What is a Mini Split: How These Systems Work

Ductless Mini Split Systems Explained: How They Work

At its heart, the magic of a ductless system lies in its ability to move heat rather than generate it. When we look at ductless mini split systems explained through the lens of physics, the process is remarkably efficient. Instead of burning fossil fuels or using massive amounts of electricity to create heat, these systems use a specialized fluid called refrigerant to "carry" heat from one place to another.

In the summer, the indoor air handler identifies excess heat in your room. The refrigerant in the indoor coils absorbs that heat, turns into a gas, and travels through a small conduit to the outdoor unit. The outdoor compressor then squeezes that gas, releasing the heat into the outside air. Once the refrigerant cools down and turns back into a liquid, it heads back inside to start the cycle all over again.

In the winter, the process simply reverses. Even when it feels freezing outside, there is still thermal energy in the air. The outdoor unit extracts that heat and pumps it into your home. Because there is no ductwork required, you don't lose any of that precious warmth to leaky or uninsulated attic spaces. This continuous, closed-loop cycle provides a level of comfort that traditional systems often struggle to match. If you are still asking yourself, What is a Mini Split Unit, think of it as a high-tech "heat mover" that gives you total control over your environment.

Core Components and Configuration Types

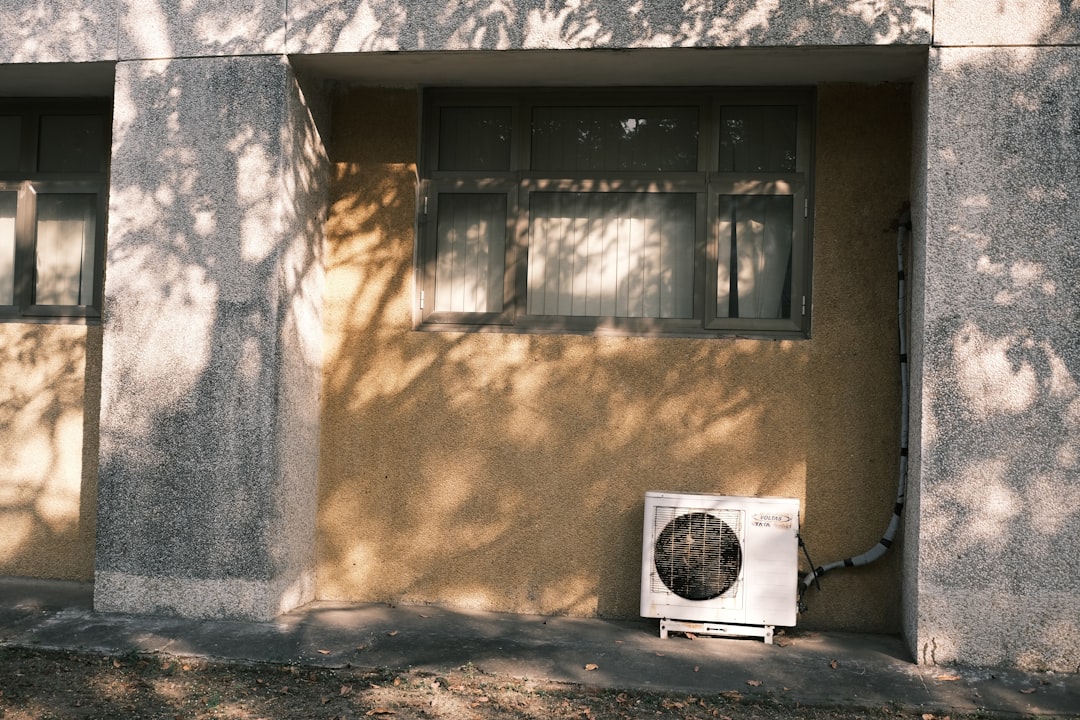

To understand how these systems maintain such a small footprint, we need to look at the hardware. A typical ductless setup consists of two primary parts: the indoor air-handling unit and the outdoor condensing unit. These are linked by a "line set" or conduit, which usually only requires a three-inch hole in your exterior wall. This conduit houses the power cable, refrigerant tubing, and a condensate drain line to remove moisture.

Inside the outdoor unit, you'll find the compressor—the "heart" of the system. Modern units use inverter technology, which acts like cruise control for your HVAC. Instead of turning completely on and off (which wastes a lot of energy), the compressor speeds up or slows down to maintain a perfectly steady temperature. Inside, the evaporator coils and a quiet fan distribute the conditioned air directly into your living space. For homeowners looking for a Mini Split AC Portland OR, this compact design is often the perfect fit for the city's unique architectural styles.

Single-Zone vs. Multi-Zone: Ductless Mini Split Systems Explained

One of the most frequent questions we hear is whether a homeowner needs a separate outdoor unit for every room. The answer depends on whether you choose a single-zone or multi-zone configuration.

• Single-Zone Systems: These consist of one outdoor unit connected to one indoor unit. They are ideal for "spot conditioning" specific areas like a new home office, a sunroom, or a garage workshop.
• Multi-Zone Systems: These are the heavy hitters of the ductless world. A single outdoor condenser can often support up to five—and in some high-capacity models, up to eight—indoor units.

The beauty of a multi-zone setup is independent control. If you want your bedroom at a crisp 68 degrees but prefer the living room at a cozy 72, you can set them exactly how you like. Each indoor unit has its own thermostat, ensuring you aren't paying to cool a guest room that nobody is using. This level of customization is why many seeking a Mini Split AC Beaverton OR opt for multi-zone technology to cover their entire home.

Versatile Indoor Unit Styles

Gone are the days when a bulky box on the wall was your only option. While wall-mounted "heads" remain the most popular due to their ease of installation and excellent airflow, there are several other styles to match your home's aesthetic:

• Wall-Mounted: High on the wall, these are cost-effective and provide great coverage.
• Ceiling Cassettes: These sit flush with the ceiling, with only a discrete grille visible. They are perfect for open-concept rooms because they distribute air in four directions.
• Floor Consoles: Ideal for rooms with slanted ceilings or large windows where wall space is at a premium. They sit low on the wall, similar to a radiator.
• Horizontal-Ducted: For those who want the efficiency of a mini split but prefer hidden vents, these small units can be tucked into a crawlspace or attic to serve one or two nearby rooms through short duct runs.

Whether you are looking for a Mini Split AC Hillsboro OR or anywhere else in our service area, there is a style that will blend seamlessly with your decor.

Advantages and Energy Efficiency Benefits

Why are so many people making the switch? Beyond the localized comfort, the advantages are numerous. First, there is the noise—or lack thereof. Some indoor units operate as quietly as 20 decibels, which is literally a whisper. Even the outdoor units are impressively quiet, often running at around 46 decibels, which is roughly the volume of a normal conversation.

Installation is another major plus. Because there are no ducts to install, a professional team can often have your system up and running in as little as one day. This makes it a much less invasive process than a full central HVAC retrofit. But the biggest draw for most of our neighbors is the question: Are Ductless Mini Split Air Conditioners Energy Efficient? The answer is a resounding yes.

Energy Efficiency and Savings: Ductless Mini Split Systems Explained

Traditional central air systems are often "energy hogs" because of the ductwork. Studies show that more than 30% of energy consumption in ducted systems is lost to leaks, holes, and poor insulation within the ducts themselves. Ductless systems eliminate this loss entirely.

By using advanced SEER2 (Seasonal Energy Efficiency Ratio) and HSPF2 (Heating Seasonal Performance Factor) ratings, these systems can reduce your energy consumption by up to 40% compared to conventional forced-air systems. Some premium models even achieve ratings as high as 35.1 SEER2.

If you want to Keep Your Home Warm with a Ductless System, you'll be pleased to know that these units are often 20% to 30% more efficient than ducted heat pumps. When you stop to consider the environmental impact and the utility bill savings, it becomes clear why many homeowners ask, Should You Get a Ductless Heat Pump. In April 2026, with energy standards becoming stricter, these systems are simply the smartest way to stay comfortable.

Sizing, Maintenance, and Comparisons

Choosing the right size for your mini split is critical. If a unit is too small, it will run constantly and fail to keep you comfortable. If it is too large, it will "short cycle," turning on and off too quickly, which leads to poor dehumidification and unnecessary wear and tear on the compressor.

Maintenance is straightforward but essential. You should clean your indoor unit's filters every month or two, especially if you have pets. This keeps the airflow strong and the air clean. Beyond that, we recommend a professional tune-up once a year to check refrigerant levels and clean the outdoor coils. If you need Mini Split Installation Lake Oswego OR, starting with a professional setup ensures your maintenance needs stay minimal for years to come.

Determining BTU Capacity: Ductless Mini Split Systems Explained

BTU stands for British Thermal Unit, and it measures the cooling and heating power of the unit. While a professional should always perform a "Manual J" load calculation to be precise, here are some general guidelines for room sizing:

• 12,000 BTU: Works well for rooms between 400 and 650 square feet.
• 18,000 BTU: Ideal for spaces ranging from 600 to 1,000 square feet.
• 24,000 BTU: Best for larger areas or open-concept floors between 800 and 1,300 square feet.

That factors like your ceiling height, the quality of your insulation, and how many windows you have will influence these numbers. For a tailored assessment, seeking Mini Split Service Beaverton OR can help you find the "Goldilocks" unit—one that is just right for your specific space.

Frequently Asked Questions

How long do ductless systems last?

Most high-quality ductless mini splits are designed to last between 10 and 15 years. However, with consistent maintenance—like keeping the filters clean and the outdoor unit free of debris—it is not uncommon for these systems to reach the 20-year mark. Because they use inverter technology, the components experience less "start-stop" stress than traditional units, which helps extend their operational life. For those in our local area, regular Mini Split Service King City OR is the best way to protect your investment.

Do they work in extreme weather?

Absolutely. Modern "hyper-heat" technology has changed the game for cold climates. Some units can operate at 100% cooling capacity in temperatures as high as 130°F and maintain up to 80% of their heating capacity when it is as cold as -22°F outside. This makes them a reliable year-round solution for our local weather. If you are looking for a Mini Split AC Newberg OR, you can rest assured that these systems are built to handle the Pacific Northwest's varied seasons.

Do mini splits purify the air?

Yes, they do! Because ductless units don't use old, dusty ductwork, they provide much cleaner air than traditional systems. Most indoor units come equipped with multi-stage filtration that can trap dust, pollen, and even some bacteria. This is a huge benefit for anyone suffering from allergies. If you need a Mini Split Service Carlton OR, we can show you how these filters work to keep your indoor air quality at its peak.

Conclusion

Ductless mini split systems explained in full show a technology that is efficient, quiet, and incredibly flexible. Whether you are trying to tame a stubborn "hot room" in your home or looking for a whole-house heating and cooling overhaul, these systems offer a modern solution that saves money and improves comfort.
