How a Heat Pump Reverses the Refrigeration Cycle: What Every Oregon Homeowner Should Know

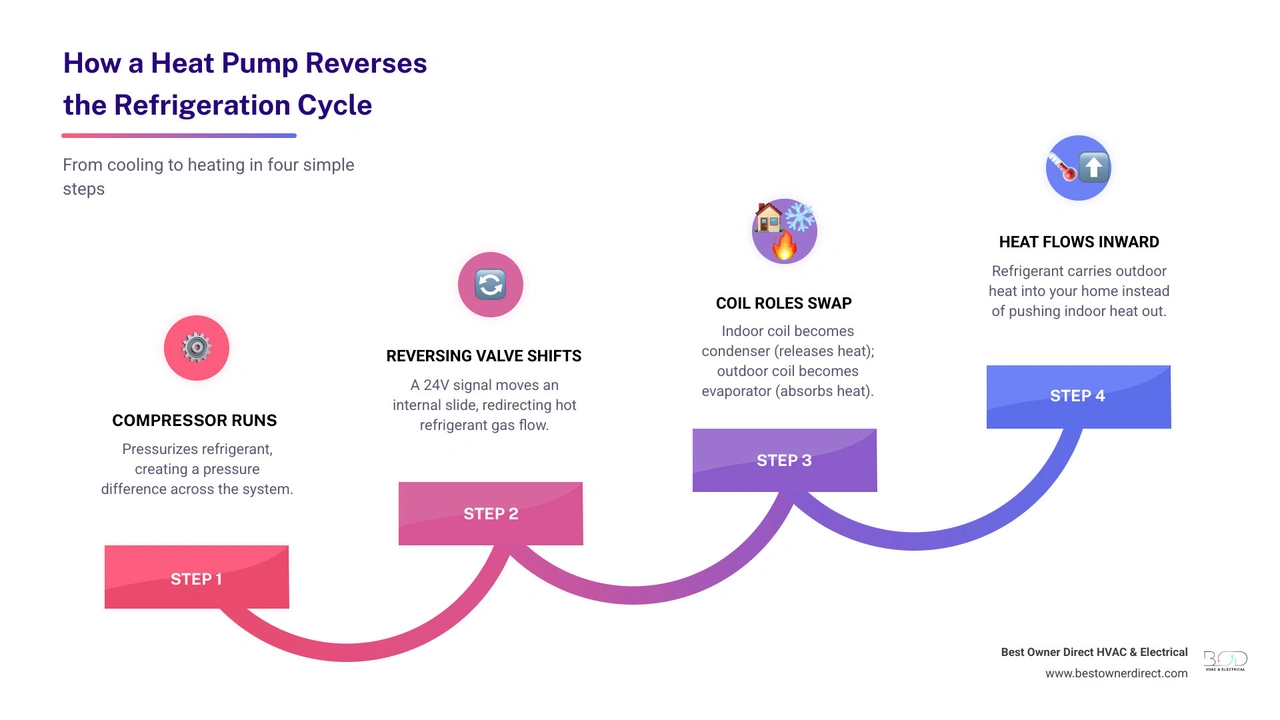

Understanding how a heat pump reverses the refrigeration cycle is simpler than most people expect. Here is the short answer:

1. Compressor runs — it pressurizes refrigerant and creates a pressure difference across the system.

2. Reversing valve shifts — a 24V signal moves an internal slide, redirecting where hot refrigerant gas travels first.

3. Coil roles swap — the indoor coil becomes the condenser (releasing heat inside) and the outdoor coil becomes the evaporator (absorbing heat from outside air).

4. Heat flows inward — the refrigerant carries outdoor heat into your home instead of pushing indoor heat out.

5. The cycle reverses again for summer — the valve shifts back, and the indoor coil absorbs heat while the outdoor coil rejects it.

That same reversal also powers the defrost cycle in winter, clearing ice off the outdoor coil without a single electric resistance wire.

The Core Components of the Refrigeration Cycle

Every standard vapor-compression system relies on four fundamental components:

• The Compressor: Takes low-pressure, cool refrigerant gas and compresses it into high-pressure, superheated gas.

• The Condenser: A heat exchanger where hot, high-pressure gas rejects heat and condenses into liquid.

• The Expansion Valve: A restriction that drops pressure suddenly, cooling the refrigerant into a cold liquid-vapor mixture.

• The Evaporator: A heat exchanger where cold refrigerant absorbs heat and evaporates back into gas.

The Role of the Reversing Valve

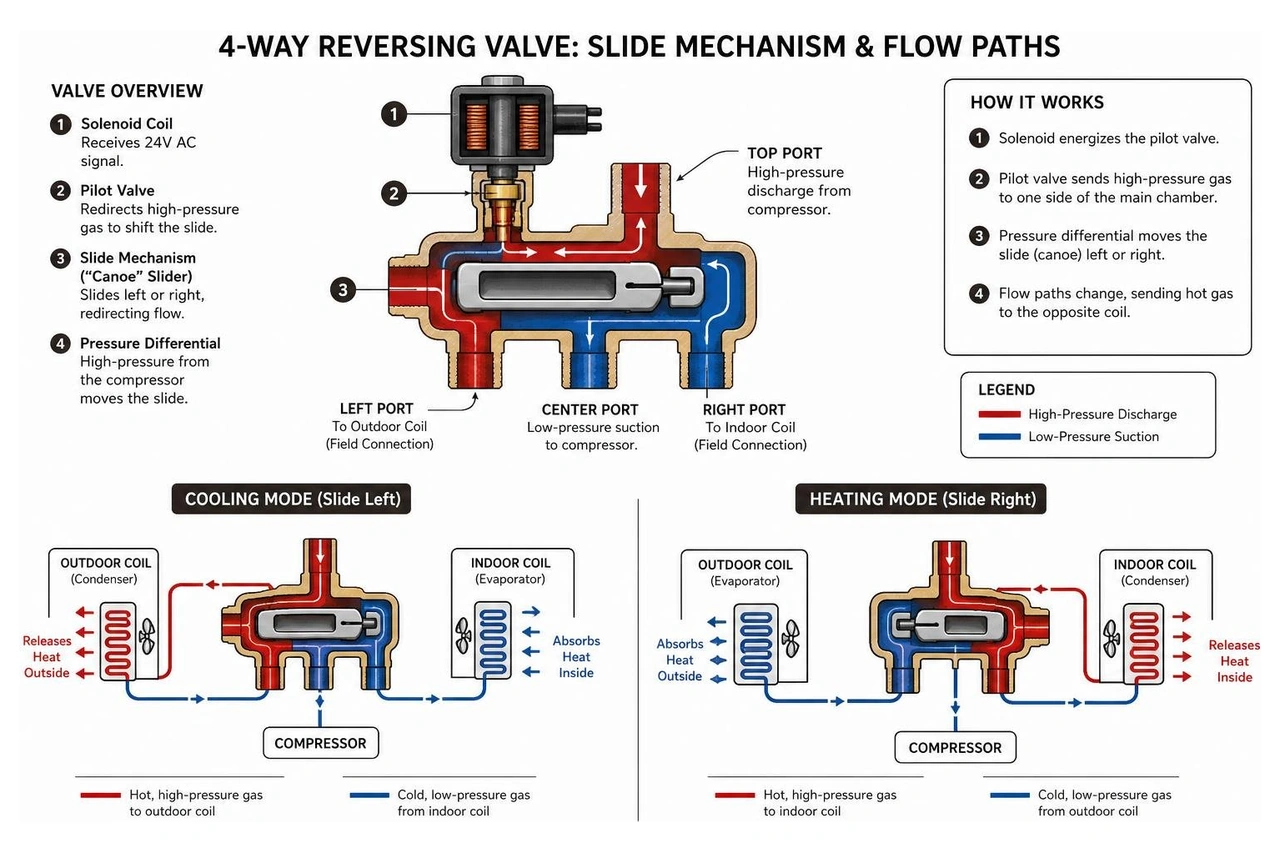

A four-way reversing valve (4/2-way valve) is placed between the compressor and heat-exchanging coils. It consists of:

1. An Electromagnetic Solenoid Coil: Receives a 24V AC signal from your thermostat.

2. A Pilot Valve: A secondary valve controlled by the solenoid that redirects high-pressure refrigerant.

3. The Slide Mechanism: A sliding block inside the valve body that changes port connections.

4. Pressure Differential: The compressor's pressure differential pushes the physical slide.

Step-by-Step: Cooling Mode in Summer

1. Thermostat Signal: Sends 24-volt signal to energize reversing valve solenoid.

2. Valve Shifts: High-pressure refrigerant forces the slide to cooling position.

3. Compressor Discharge: Hot gas is directed to the outdoor coil.

4. Outdoor Rejection: Outdoor coil acts as condenser, releasing heat outside.

5. Expansion: Refrigerant becomes freezing cold through expansion valve.

6. Indoor Absorption: Cold refrigerant in indoor coil absorbs household heat.

7. Return to Compressor: Low-pressure gas returns to compressor suction line.

Switching to Heating Mode in Winter

1. Thermostat Signal: De-energizes reversing valve solenoid (or energizes via B terminal for certain brands).

2. Valve Shifts: Pilot valve shifts pressure, sliding the internal mechanism back.

3. Compressor Discharge: Hot gas is directed to the indoor coil.

4. Indoor Heating: Indoor coil now acts as condenser, warming living spaces.

5. Expansion: Refrigerant becomes extremely cold through outdoor expansion valve.

6. Outdoor Absorption: Outdoor coil absorbs ambient heat from cold air.

7. Return to Compressor: Gas returns to compressor suction line.

Heating vs. Cooling Mode Comparison Table

• Reversing Valve State — Cooling Mode (Summer): Typically Energized (O Terminal) — Heating Mode (Winter): Typically De-energized (B Terminal for some)

• Indoor Coil Role — Cooling Mode (Summer): Evaporator (Absorbs heat) — Heating Mode (Winter): Condenser (Rejects heat)

• Outdoor Coil Role — Cooling Mode (Summer): Condenser (Rejects heat) — Heating Mode (Winter): Evaporator (Absorbs heat)

• Refrigerant in Indoor Coil — Cooling Mode (Summer): Cold, low-pressure liquid-vapor — Heating Mode (Winter): Hot, high-pressure superheated gas

• Refrigerant in Outdoor Coil — Cooling Mode (Summer): Hot, high-pressure superheated gas — Heating Mode (Winter): Cold, low-pressure liquid-vapor

• Active Metering Device — Cooling Mode (Summer): Indoor Expansion Valve — Heating Mode (Winter): Outdoor Expansion Valve

The Winter Defrost Cycle

When outdoor temperatures hover between 30°F and 40°F with high humidity, frost forms on the outdoor coil. Modern heat pumps use demand defrost controls to address this:

1. The Reversing Valve Shifts: System temporarily switches to cooling mode.

2. The Outdoor Fan Shuts Off: Heat is trapped inside the outdoor cabinet.

3. Hot Gas Melts the Ice: Hot refrigerant gas is sent to the outdoor coil.

4. Auxiliary Heat Activates: Electric backup heat prevents cold air from entering the home.

5. Termination: Typically lasts 3 to 5 minutes until ice is gone.

Why Cycle Reversal Defrosting Beats Electric Resistance

Converting electrical energy to heat is inefficient. By using cycle reversal, heat pumps leverage their natural efficiency advantage. "Even during defrosting, where we deduct 0.5 COP for compressor power, the ratio of electrical energy used to defrost heat delivered is roughly 2:5," making it significantly more energy-efficient than direct electric wire defrosting.

Troubleshooting a Faulty Reversing Valve

Common failure modes include:

• A Physically Stuck Valve: Internal slider becomes stuck due to debris or weak compressor pressure.

• Solenoid Coil Burnout: Electrical coil burns out or loses 24V connection.

• Internal Refrigerant Bypass: Slider seals degrade, causing hot gas to leak directly back into suction line.

• Weak Compressor Pressure: Aging compressor cannot produce enough pressure to push the slide.

Professional Diagnostics and Maintenance

Technicians perform several tests to diagnose reversing valve issues:

1. The Temperature Differential Test: Measures temperature of three bottom copper lines to detect internal bypass leaks.

2. Solenoid Electrical Testing: Uses multimeter to check for 24V AC and measure electrical resistance.

3. Refrigerant Recovery: If valve is broken or leaking, certified technician must safely recover refrigerant, braze new valve, vacuum system, and recharge.

Frequently Asked Questions

Why does my heat pump blow cool air during winter?

Heat pumps typically deliver air around 90°F to 100°F. Since human body temperature is 98.6°F, this air may feel slightly cool despite actively warming your room. Additionally, during defrost cycles lasting 3 to 5 minutes, air may feel cooler before auxiliary heat fully engages.

Can a homeowner manually unstick a reversing valve?

No. The brass valve body is thin and copper lines are easily punctured. Denting or puncturing will cause refrigerant leaks and turn a simple repair into an expensive system replacement.

How long does a defrost cycle last?

A standard defrost cycle lasts between 3 to 5 minutes. Modern demand defrost systems automatically terminate once ice has melted, ensuring the system returns to heating as quickly as possible.

Conclusion

The ability of a heat pump to reverse its refrigeration cycle makes it the ultimate year-round comfort solution for Oregon homeowners. The four-way reversing valve is essential for providing cool relief during hot summers and efficient warmth with self-defrosting capabilities during damp winters. Professional care is required to keep it in peak condition since it operates under high pressures within sealed refrigerant lines.
