How the Indoor and Outdoor Units Are Connected: What Every Homeowner Should Know

Understanding how the indoor and outdoor units are connected is the first step to knowing why your air conditioner works — and what to do when it doesn't. Here is a quick breakdown:

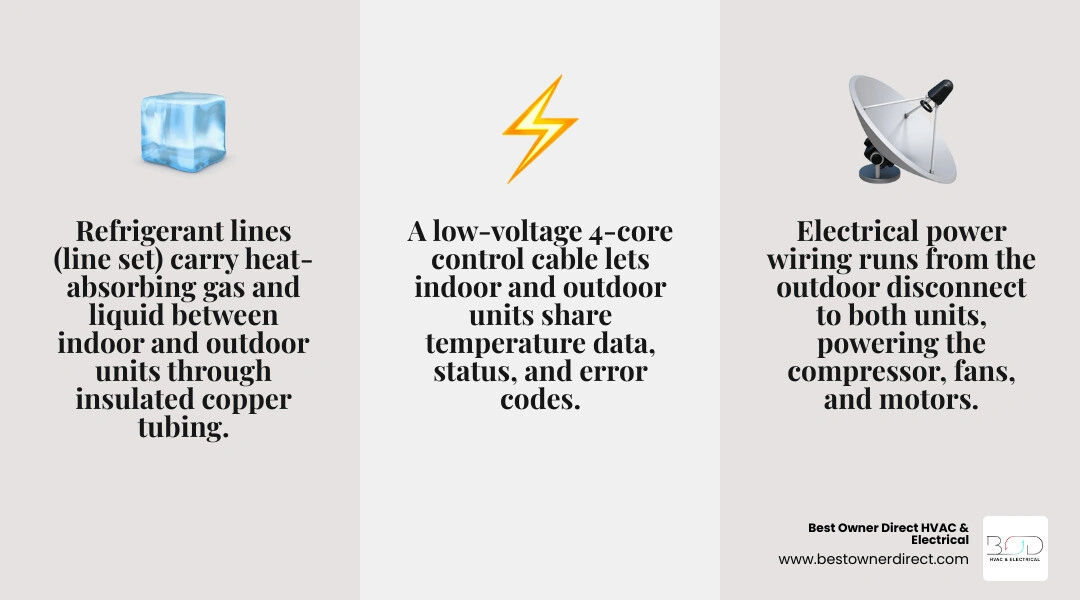

The three main connections between indoor and outdoor units:

1. Refrigerant lines (line set) — Insulated copper tubing that carries refrigerant back and forth between the two units to transfer heat.
2. Electrical power wiring — Supplies power from the outdoor unit's disconnect to both units, running motors, fans, and the compressor.
3. Communication/control wiring — A low-voltage cable (often a 4-core wire) that lets the indoor and outdoor units share data like temperature readings, operational status, and error codes.

These three connections are typically bundled together and routed through a small hole in your wall to the outdoor unit — a package often called a "utility bundle" or "line set."

Most homeowners never think about what's inside that bundle of pipes and wires running along the side of their house — until something goes wrong. A split-system air conditioner looks simple from the outside, but behind the scenes it relies on a precisely engineered set of physical and electrical connections to keep your home comfortable. Get one of those connections wrong during installation or replacement, and you're looking at refrigerant leaks, communication failures, or a compressor that burns out far too soon. I'm Chandrine Stepisnik, and in this guide I'll walk you through exactly how these connections work so you can make smarter decisions about your home's HVAC system.

Quick how the indoor and outdoor units are connected definitions:

• how a mini split installation works step by step
• how line sets are run through your walls

Understanding How the Indoor and Outdoor Units Are Connected

To understand how a split-system air conditioner or heat pump keeps your home comfortable during hot Oregon summers, we have to look closely at the physical bridge between the indoor air handler and the outdoor condenser. This bridge is known as the "utility bundle" or "line set." It serves as the circulatory, nervous, and digestive systems of your HVAC unit.

Without this connection, the indoor and outdoor units would simply be two isolated metal boxes. When we perform an installation, we must run this bundle from the indoor unit, through the building's envelope, and down to the outdoor unit. Understanding How Line Sets Are Run Through Your Walls is incredibly important for maintaining your home's structural integrity, preventing water leaks, and ensuring optimal system efficiency.

How the indoor and outdoor units are connected via the refrigeration cycle

The physical heat transfer in a split system relies entirely on closed-loop copper tubing. This tubing consists of two separate lines:

• The Liquid Line: The smaller, uninsulated (or lightly insulated) copper tube that carries high-pressure liquid refrigerant from the outdoor condenser to the indoor evaporator coil.
• The Gas (or Suction) Line: The larger, heavily insulated copper tube that carries low-pressure, cool gaseous refrigerant back to the outdoor compressor.

These copper lines must be made of seamless, phosphoric acid deoxidized copper capable of handling high pressures. In modern systems utilizing R410A refrigerant, the operating pressures are up to 1.6 times higher than older R22 systems. This means the copper tubing must have a minimum thickness of 0.8 mm (for 3/8-inch lines) to 1.0 mm (for 5/8-inch lines) to prevent ruptures. Newer systems transitioning to R32—a mildly flammable refrigerant with a much lower Global Warming Potential (GWP) of 550—also require strict, leak-proof connections and careful handling to ensure safety.

To prevent condensation from dripping onto your drywall or wooden framing, thermal insulation is mandatory. In the damp climate of the Pacific Northwest, high indoor or outdoor humidity can cause uninsulated pipes to "sweat" heavily. Water damage, wood rot, and mold growth are common consequences of poorly insulated line sets. We ensure that both the liquid and gas lines are individually insulated with high-quality closed-cell foam to isolate temperatures and prevent condensation.

How the indoor and outdoor units are connected electrically and digitally

If the refrigerant lines are the circulatory system, the electrical and control wiring is the nervous system. The indoor and outdoor units must stay in constant communication to coordinate fan speeds, compressor modulation, and defrost cycles.

Traditionally, this connection is made via a multi-conductor control cable—often referred to as a "14/4 wire" (a 14-gauge, 4-conductor cable) for ductless systems. This cable connects the terminal blocks of the indoor and outdoor units directly.

• Terminal 1 & 2: Typically carry high-voltage power from the outdoor unit (which is connected to the main electrical panel) to run the indoor fan motor.
• Terminal 3: Serves as the dedicated digital communication line, transmitting data packets containing temperature readings, user setpoints, and system diagnostics.
• Ground Wire: The green or bare wire that grounds the entire indoor unit back to the outdoor chassis for electrical safety.

In some advanced modern systems, communication can occur over the high-voltage power lines themselves using Power Line Communication (PLC). By superimposing high-frequency data signals directly onto the existing electrical lines, PLC can reduce the physical installation steps by up to two-thirds.

Regardless of the method used, preventing electromagnetic interference (EMI) is critical. If low-voltage communication lines are run too close to high-voltage lines without proper shielding, the digital signals can become corrupted, resulting in communication error codes (such as "U4" or "U5" on Daikin systems) and system shutdowns. We route all transmission wiring securely, keeping it separated from high-current electrical lines, and we ensure that all connections at the terminal blocks are torqued precisely to prevent loose contacts.

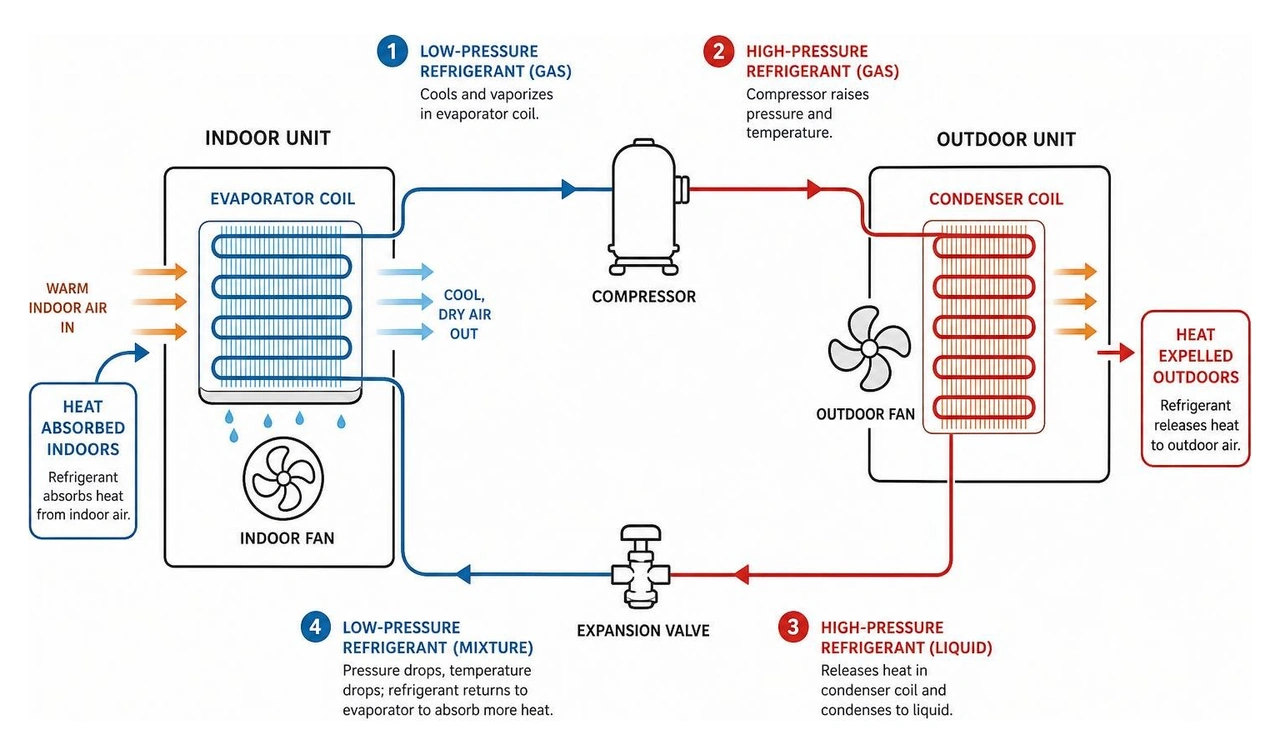

The Core Components and the Cooling Cycle

To appreciate why how the indoor and outdoor units are connected matters so much, we have to look at the thermodynamic magic happening inside the system. An air conditioner does not actually "create" cold air; instead, it acts as a heat relocator. It absorbs heat from inside your home and dumps it outdoors.

This process relies on four main components working in a continuous loop: the compressor, the condenser coil, the expansion valve, and the evaporator coil. For a deeper dive into this process, check out our guides on What Exactly Is a Split Unit in HVAC and How Does a Heat Pump Work.

Evaporator and Condenser Coils

The cooling cycle begins at the indoor unit, commonly known as the air handler. Inside this unit sits the evaporator coil and a powerful blower fan. As warm, humid indoor air is drawn across the cold copper fins of the evaporator coil, the cold refrigerant flowing inside the tubes absorbs the heat from the air.

At the same time, moisture in the air condenses on the cold coil surface, effectively dehumidifying your home. As industry experts like to point out, the primary job of an air conditioner is actually to remove humidity—because drier air feels significantly cooler and more comfortable, even at higher temperatures.

Once the refrigerant inside the evaporator coil absorbs this indoor heat, it vaporizes into a cool gas. The blower fan then pushes the newly cooled and dehumidified air back through your home's ductwork. The warm gaseous refrigerant is sucked through the gas line of the line set to the outdoor unit.

In the outdoor unit, the compressor squeezes the gas, raising its pressure and temperature. This hot, high-pressure gas then enters the outdoor condenser coil. A large fan pulls outdoor air across the condenser coil, transferring the heat from the refrigerant to the outdoor air. As the heat is expelled, the refrigerant cools down and condenses back into a high-pressure liquid, ready to repeat the cycle.

The Role of the Expansion Valve

Before the high-pressure liquid refrigerant can return to the indoor evaporator coil to absorb more heat, its pressure must be drastically reduced. This is the job of the expansion valve (or metering device).

Think of the expansion valve like a spray bottle nozzle. It restricts the flow of refrigerant, forcing the high-pressure liquid through a tiny opening. This sudden drop in pressure causes the refrigerant to instantly cool down to a freezing temperature.

In standard central split systems, the expansion valve is typically located indoors, right next to the evaporator coil. However, in many ductless mini-split systems, the expansion valve is located entirely within the outdoor unit.

Because the metering device is outdoors in a mini-split, the refrigerant is already at a very low temperature when it leaves the outdoor unit. Consequently, both the liquid line and the vapor line carry freezing refrigerant. This unique design is why both lines must be individually insulated in a mini-split system—otherwise, the liquid line would sweat profusely, causing severe water damage inside your walls.

Ductless Mini-Splits vs. Central Split Systems

While both central air conditioners and ductless mini-splits operate on the same basic refrigeration cycle, they differ significantly in how their indoor and outdoor units are physically connected.

A central split-system uses one large indoor air handler connected to a single outdoor condenser. The cooled air is then distributed throughout the home via a network of metal or flexible ductwork. A ductless mini-split system, on the other hand, bypasses ductwork entirely, connecting the outdoor unit directly to one or more wall-mounted, floor-mounted, or ceiling-recessed indoor blower units.

To learn more about these differences, you can read our detailed articles on Ductless Mini Split Systems Explained and explore our Mini Split Installation & Replacement services.

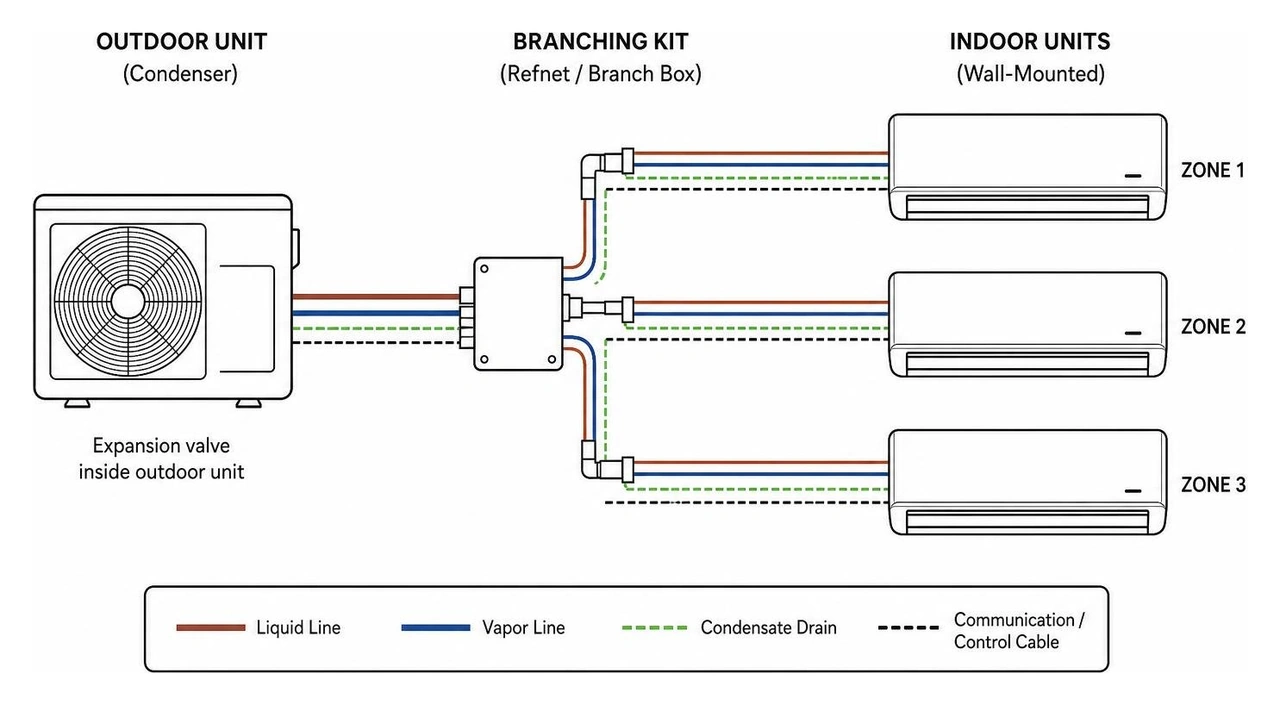

Multi-Zone Connections

In a multi-zone ductless mini-split installation, a single outdoor condenser unit can connect to multiple indoor air handlers. This allows for customized, room-by-room temperature control.

To achieve this, we use specialized refrigerant branching kits (often called refnets or branch boxes) to split the refrigerant flow from the main line set into individual lines for each indoor unit. This setup allows you to keep your home office cool and comfortable during the day while turning off the cooling in empty guest bedrooms, saving a significant amount of energy.

Line Set Routing Differences

Central systems usually have short, direct line set runs from an attic, basement, or garage utility closet to the outdoor unit. In contrast, ductless mini-split lines must be routed directly to the specific rooms where the indoor units are mounted.

This requires boring a 65mm (approx. 2.5-inch) feed-through hole through the exterior wall. This hole must be drilled at a slight downward slope toward the outside. This slope is critical because it allows the condensate drain line (which must always be positioned at the absolute bottom of the utility bundle) to drain water away using gravity.

On the exterior of your home, we protect the exposed utility bundle using a durable, weather-resistant plastic conduit known as a "line hide" or line set cover. This shields the copper insulation and electrical wiring from UV damage, wind, rain, and pests, keeping the installation looking clean and professional.

Key Considerations and Frequently Asked Questions

A successful air conditioning installation or replacement requires careful planning and execution. Because the indoor and outdoor units must operate in perfect harmony, even minor errors during the connection process can lead to major headaches down the road. If you are considering upgrading your system, we invite you to learn more about our AC Installation & Replacement services.

Can I mix and match indoor and outdoor units from different brands?

Technically, it is sometimes possible to connect a different brand of indoor coil to an outdoor condenser, but it is highly discouraged by modern HVAC standards and building codes.

Modern energy efficiency standards (such as SEER2 ratings) require indoor and outdoor units to be certified matched pairs. The wattage of your indoor blower motor is a major factor in calculating your system's overall efficiency. For example, pairing a modern outdoor unit with an older, high-wattage furnace blower can drop your system's efficiency from 14 SEER to 12 SEER, violating local building codes.

Furthermore, mismatching brands will almost certainly void your manufacturer's warranty. Because modern inverter-driven systems rely on proprietary digital communication protocols, a mismatched indoor and outdoor unit will not be able to "talk" to each other. This communication barrier can completely disable critical safety features and prevent heat pumps from switching into their heating cycles.

What happens if the refrigerant lines are too short?

It might seem like a good idea to keep the refrigerant lines as short as possible to save on materials, but lines that are too short can actually cause serious mechanical issues.

Most manufacturers require a minimum line set length of 1.5 to 3 meters (5 to 10 feet). If the refrigerant lines are too short, the normal operating vibrations and noise from the outdoor compressor can easily travel along the copper tubing directly into your quiet indoor living spaces. Additionally, a minimum length is required to ensure the refrigerant has enough volume to balance system pressures safely.

Does an air conditioner bring in fresh air from the outside?

No. This is one of the most common misconceptions among homeowners. Air conditioners do not bring in fresh air from the outdoors.

Instead, the indoor unit draws in the existing air from your home, passes it over the cold evaporator coil to remove heat and moisture, filters it to capture dust and airborne particles, and recirculates it back into your rooms. The outdoor unit's only job is to release the heat that was absorbed from your indoor air.

Conclusion

Connecting the indoor and outdoor units of an HVAC system is a highly precise task that requires specialized tools, technical expertise, and a deep understanding of thermodynamics and electrical safety. From flaring copper lines to pulling a deep vacuum of at least 350 microns to remove moisture, every step of the installation process directly impacts your system's efficiency, reliability, and lifespan.
