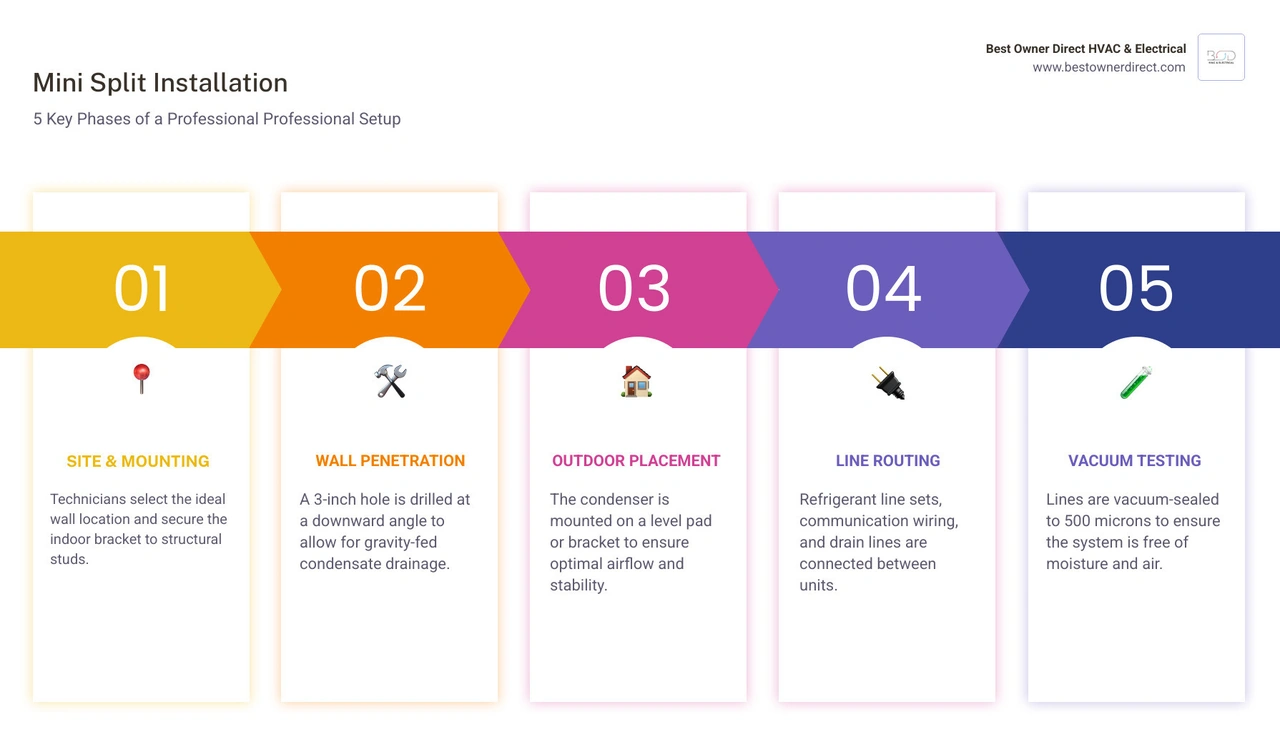

How a mini split installation works step by step comes down to six core stages that a licensed HVAC technician completes in a single visit for most single-zone systems:

1. Site selection - Choosing the best wall location for the indoor unit and a clear, ventilated spot for the outdoor condenser
2. Mounting the indoor unit - Securing a level wall bracket to wall studs so the air handler sits correctly
3. Wall penetration - Drilling a 2- to 3-inch hole at a slight downward angle to route the line set and drain line
4. Installing the outdoor condenser - Setting the unit on a stable pad or wall bracket with proper airflow clearance
5. System connections - Running refrigerant lines, communication wiring, and the condensate drain between both units
6. Testing and startup - Pressure testing with nitrogen, pulling a deep vacuum, releasing refrigerant, and verifying the system runs in both heating and cooling modes

For most homes in the Portland metro area, a single-zone system takes a professional 4 to 8 hours from start to finish. Multi-zone systems with multiple indoor units can take one to two days depending on complexity.

A ductless mini split gives you zoned comfort without the ductwork — and that flexibility is a big reason why more homeowners across Oregon are choosing them for room additions, older homes, and spaces where extending central air simply isn't practical. But getting the most out of one depends almost entirely on how well it's installed. According to industry data, improper installation alone can reduce a system's efficiency by up to 30%, which means higher energy bills and added stress on the equipment from day one.

The process involves more than mounting two boxes and running a pipe between them. It includes precise refrigerant line work, dedicated electrical circuits, vacuum testing to below 500 microns, and careful attention to condensate drainage — all of which require the right tools and technical know-how to do correctly.

This guide breaks down exactly what happens during a professional mini split installation so you know what to expect and what to look for.

Understanding the Components of a Ductless System

Before we jump into the physical labor, it helps to know what we are actually putting in your home. A mini split isn't just one machine; it is a team of components working together to move heat from one place to another. This is the core of Understanding Ductless Mini Split Systems and Heat Pumps.

• The Indoor Air Handler: This is the sleek unit mounted on your wall. It contains the evaporator coil and a quiet fan that pulls air from the room, cools or heats it, and sends it right back out.
• The Outdoor Condenser: This sits outside your home. It houses the inverter compressor, which is the "heart" of the system. Unlike traditional units that are either "on" or "off," an inverter compressor can speed up or slow down to maintain a steady temperature, saving you a massive amount of energy.
• The Refrigerant Line Set: These are two copper tubes that carry the refrigerant between the indoor and outdoor units. They are the highway for heat transfer.
• The Condensate Drain: As the indoor unit cools the air, it also removes moisture (dehumidification). This water needs a way out, which is why we install a dedicated drain line.
• Communication Wiring: This cable allows the indoor and outdoor units to "talk" to each other, ensuring they stay in sync.

Because there are no ducts, you avoid the energy losses common in traditional systems. In fact, up to 30% of energy can be lost through leaky or uninsulated ductwork in a central air system. By going ductless, you ensure that 100% of the air you pay to cool or heat stays in your living space. For a deeper dive into the mechanics, check out Ductless Mini Split Systems Explained.

How a Mini Split Installation Works Step by Step

When our team arrives at your home in Cornelius or the surrounding areas, we don't just start drilling. We begin with a plan. How a mini split installation works step by step starts with protecting your floors and furniture. We use drop cloths and shoe covers because we treat your home like our own.

The first physical step is selecting the perfect spot for the indoor unit. We look for an exterior wall where possible, as this simplifies the drainage and line set routing. We also ensure the unit is at least six feet above the floor for optimal air distribution and away from direct sunlight or fluorescent lights that might interfere with the remote control signal. If you are in the Washington County area, you can learn more about our local process at Mini Split Installation Cornelius OR.

Preparing for How a Mini Split Installation Works Step by Step

Preparation is where we win or lose the "efficiency battle." We start by verifying the unit is the right size for your room. A unit that is too small will run constantly and never get you comfortable, while a unit that is too large will "short cycle," turning on and off so fast that it fails to remove humidity. We use BTU (British Thermal Unit) calculations based on your square footage, window placement, and insulation levels.

If you’re wondering how many units you need for a larger home, our guide on How Many Mini Split Heads Do I Need is a great resource.

Once the sizing is confirmed, we mount the indoor wall bracket. This isn't just a matter of a few screws; we use a level to ensure it is perfectly straight. If the bracket is tilted, the condensate water won't drain properly, leading to water dripping down your interior wall — a mess nobody wants. We also make sure the bracket is secured firmly into wall studs to support the 40-50 pound weight of the air handler. Homeowners in the Hillsboro area can see how we handle these specifics at Mini Split Installation Hillsboro OR.

Finalizing How a Mini Split Installation Works Step by Step

After the bracket is set, it’s time for the "point of no return": the wall penetration. We drill a 3-inch hole through your wall to the outside. Here is a pro tip we always follow: we drill at a slight downward angle toward the exterior. This allows gravity to do the work of draining the condensate water away from your home.

We then route the line set, communication wire, and drain hose through the hole. To protect your home’s insulation and prevent pests from entering, we install a PVC sleeve in the hole. This also protects the copper lines from being damaged by the rough edges of the wall materials. For residents in the Beaverton area, this step is handled with extreme care to maintain the home's envelope, as detailed at Mini Split Installation Beaverton OR.

Critical Electrical and Safety Requirements

Electrical work is where we put on our "safety first" hats. A mini split is a powerful piece of equipment that requires its own dedicated circuit. You cannot simply plug these into a standard wall outlet. Most systems we install in the Portland metro area require a 240V dedicated line.

We install an outdoor disconnect box near the condenser. This is a safety requirement that allows a technician (or you, in an emergency) to cut power to the unit instantly without running to the main breaker panel. We also ensure the system is properly grounded to prevent electrical surges from damaging the sensitive inverter boards inside the unit.

Proper wiring is essential for the units to communicate. We use high-quality, shielded 14 AWG, 4-conductor stranded cable to deliver power and data between the indoor and outdoor components. If you are in the city, our Mini Split Installation Portland OR page explains how we navigate local electrical codes. Similarly, for those in the Lake Oswego area, we ensure every installation meets the high standards expected for Mini Split Installation Lake Oswego OR.

System Testing and Performance Calibration

This is the most technical part of how a mini split installation works step by step. Once everything is connected, we don't just "turn it on." We have to ensure the system is "tight" (leak-free) and "dry" (free of moisture).

1. Nitrogen Pressure Test: We fill the lines with dry nitrogen to about 300 psi and let it stand. If the pressure holds for at least 10-15 minutes, we know the flare connections are perfect. We never use soapy water to check for leaks, as the chemicals can corrode the copper over time.
2. The Vacuum Decay Test: This is critical. We use a vacuum pump to remove all air and moisture from the lines. We are looking for a reading of 500 microns or lower on our digital gauge. Moisture in a refrigerant system can turn into acid, which will eat your compressor from the inside out. This step ensures your system lasts the full 10-15 years it's designed for.
3. Refrigerant Release: Once the vacuum is confirmed, we release the pre-charged refrigerant from the outdoor unit into the lines.
4. Condensate Test: We pour water into the indoor unit's drain pan to make sure it flows freely to the outside.

We perform these rigorous tests for every client, whether you are looking for Mini Split Installation Tigard OR or a setup for Mini Split Installation West Linn OR.

Maintaining Your System After Installation

Once we finish the walkthrough and show you how to use your new remote, the work isn't entirely over. To keep that high SEER2 efficiency rating (which can go up to 28.5!), you need to perform basic maintenance.

• Monthly Filter Cleaning: This is the big one. Most mini splits have filters that you can simply pop out, rinse in the sink, dry, and put back. We recommend doing this every 2-4 weeks, especially if you have pets.
• Outdoor Clearance: Ensure that leaves, snow, or shrubs aren't blocking the airflow to your outdoor condenser. It needs about 12-20 inches of clear space to "breathe."
• Annual Professional Service: Once a year, have a pro from Best Owner Direct HVAC & Electrical come out to deep-clean the coils and check the refrigerant levels.

Regular care ensures your system doesn't lose that 30% efficiency we worked so hard to preserve during installation. If you're in the Sherwood area, we can help with a maintenance plan; check Mini Split Installation Sherwood OR for details. We also provide these services for Mini Split Installation Tualatin OR.

Frequently Asked Questions about Ductless Setup

How long does a standard installation take?

For a standard single-zone system, we typically finish in 4 to 8 hours. If we are doing a multi-zone system (one outdoor unit with three or four indoor heads), it can take a full day or two. We always aim to be in and out as quickly as possible without sacrificing quality. For those in Clackamas County, you can see our local timelines at Mini Split Installation Oregon City OR.

Can I install a mini split on an interior wall?

Yes, you can! However, it is more complex. Because an interior wall doesn't lead directly outside, we have to find a way to route the drain line. Usually, this means installing a small condensate pump to push the water up into an attic or across a ceiling. It’s a bit more work, but it’s a great solution for rooms in the center of the house. We’ve done many of these in the Newberg area; see Mini Split Installation Newberg OR for more info.

Do mini splits increase home value?

Absolutely. In 2026, energy efficiency is a top priority for home buyers. A home with zoned, high-efficiency cooling and heating is much more attractive than one relying on window units or old baseboard heaters. It shows the home has been modernized and is cheap to run. This is a common topic for our clients in Mini Split Installation Wilsonville OR.

Conclusion

Understanding how a mini split installation works step by step helps you appreciate the precision required to get these systems running at peak performance. While it might be tempting to try a DIY kit, the risks of refrigerant leaks, electrical mishaps, and voided warranties often outweigh the initial savings.

At Best Owner Direct HVAC & Electrical, we bring years of experience to every job across the Portland metro area. Our licensed technicians ensure your system is sized correctly, installed safely, and tested rigorously so you can enjoy year-round comfort. Whether you are in Banks, Gladstone, or right here in Cornelius, we are ready to help you upgrade your home's comfort.
