How Long Does a Mini Split Installation Take? A Real Timeline for Oregon Homeowners

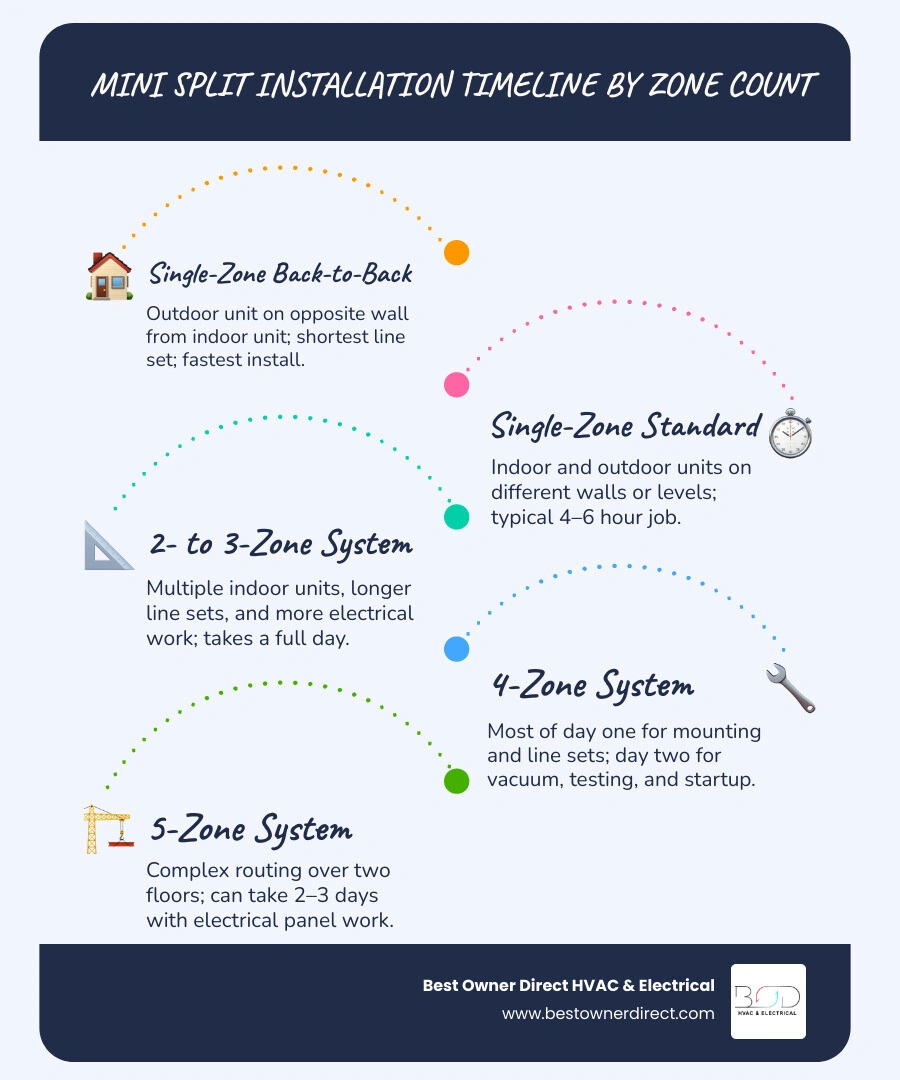

How long does a mini split installation take depends mainly on how many zones you need and how complex your home's layout is. Here's a quick breakdown:

Most homeowners with a single-zone system can expect the job wrapped up in a morning or afternoon. Multi-zone projects spanning a two-story home are more likely a two-day commitment.

There's a reason experienced field technicians say it so plainly: a simple single-zone ductless mini split can be done in about four hours with a two-person crew — but that timeline shifts fast once you add zones, long line set runs, or an electrical panel that needs upgrading.

I'm Chandrine Stepisnik, and in this guide I'll walk you through exactly what drives those timelines so you can plan your project with confidence.

How long does a mini split installation take glossary:

• how a mini split installation works step by step
• how line sets are run through your walls

How Long Does a Mini Split Installation Take for Single vs. Multi-Zone Systems?

When planning a ductless upgrade for your home in the Willamette Valley, one of the first questions you will likely ask is how much of your day will be taken up by the installation crew. The overall timeline scales directly with the number of indoor "heads" or zones you plan to install.

As we look at the comparison of installation times, a clear pattern emerges: the more indoor units you introduce, the more complex the physical routing becomes.

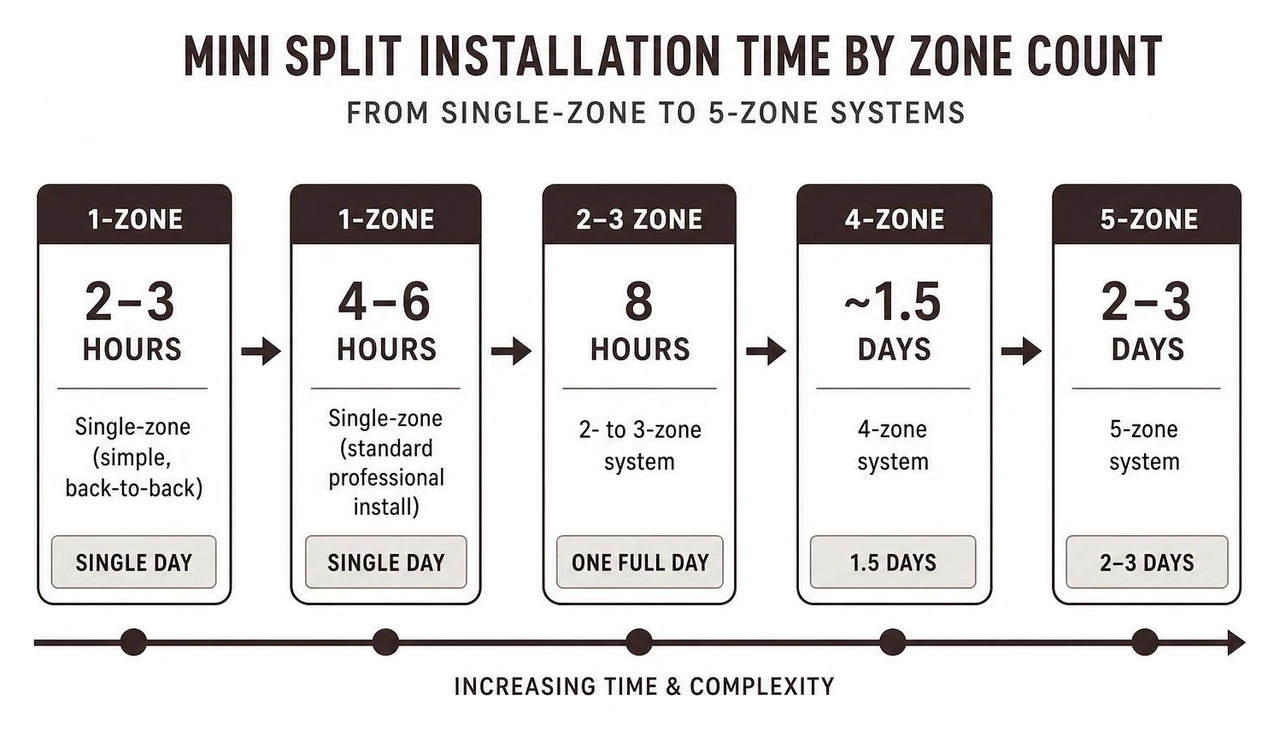

To help you visualize how these timelines differ, here is a detailed breakdown of labor hours and calendar days based on the number of zones:

In a basic single-zone setup, the indoor air handler and the outdoor condenser are mounted practically back-to-back on a single exterior wall. This keeps line set routing incredibly straightforward.

However, when you move to multi-zone systems, the installation team must route individual refrigerant lines, communication cables, and condensate drain lines from a single, centralized outdoor condenser to various rooms across your home. To understand how these components interact to keep your home comfortable, you can read more in our guide on Ductless Mini Split Systems Explained.

Each additional indoor unit adds roughly 2 to 3 hours of physical installation time. This extra time is spent carefully measuring, cutting, flaring, insulating, and routing the line sets through your attic, crawlspace, or along your home's exterior siding.

Why a Single-Zone Setup is Typically a Same-Day Job

For a professional HVAC crew, a standard single-zone installation is a highly routine job that almost always finishes in 4 to 6 hours. If your home has a straightforward layout—such as a bonus room above a garage or an open-concept living area where the indoor head mounts directly on an exterior wall—the process is incredibly fast.

Under ideal conditions, where the wall is clear of obstructions and the electrical panel is nearby, a basic back-to-back single-zone install can be completed in as little as 2 to 3 hours.

When we perform a single-zone installation, such as a Mini Split AC Beaverton OR project, we follow a highly coordinated workflow. One technician focuses on preparing the outdoor condenser pad, securing the unit, and routing the electrical disconnect. Meanwhile, the second technician works indoors, securing the mounting bracket to the wall studs, drilling the three-inch penetration hole at a slight downward angle, and preparing the indoor air handler. Because both halves of the system are prepped simultaneously, the actual "hookup" takes very little time, allowing us to pack up our tools and leave your home clean before the afternoon is over.

How Long Does a Mini Split Installation Take for Multi-Zone Systems?

If you are looking to zone your entire home—perhaps heating and cooling three bedrooms upstairs and a main living space downstairs—you are looking at a multi-zone system. These installations are naturally more complex and require a larger time commitment.

A 2- to 3-zone mini split system usually finishes in one full workday (approximately 8 hours). However, if your project requires a 4-zone setup, it typically takes 1.5 days, while a comprehensive 5-zone system can take 2 to 3 days to fully complete.

Multi-zone projects take longer because of the sheer physical distance between the outdoor compressor and the furthest indoor heads. For example, during a Mini Split Installation Portland OR project in a classic two-story home, we often have to run line sets from the backyard, up the exterior siding, and into second-floor bedrooms.

Every single line set must be individually insulated, secured with specialized mounting brackets, and encased in protective, color-matched line hide to preserve your home’s curb appeal. Additionally, the physical layout and design of a multi-zone system require a meticulous design process before a single hole is drilled, ensuring that the refrigerant lines do not exceed the manufacturer’s maximum allowable length.

Step-by-Step Breakdown of the Installation Process

To understand why a professional mini split installation takes several hours, it helps to look at the process step-by-step. Each phase of the installation requires precision, specialized tools, and strict adherence to mechanical codes.

Here is a breakdown of how a professional crew spends their time during a typical single-zone installation:

1. Site Assessment & Prep (30 – 60 Minutes)

Before any physical work begins, the lead technician will walk through your home with you to confirm the exact mounting locations of the indoor air handlers and the outdoor condenser. We verify that the selected wall can support the weight of the indoor unit, check for hidden electrical wiring or plumbing pipes inside the wall cavity, and ensure the outdoor area has adequate physical clearance.

2. Mounting the Indoor Unit (1 – 2 Hours)

The indoor mounting bracket must be perfectly level to prevent condensate water from overflowing the drain pan. The technician locates the wall studs, secures the heavy-duty metal bracket, and then drills a precise three-inch hole through the drywall, insulation, and exterior sheathing. This hole is angled slightly downward toward the outside to allow water to drain naturally via gravity.

3. Placing the Outdoor Condenser (1 – 2 Hours)

The outdoor unit requires a stable, level foundation to prevent vibration and shifting over time. The crew will either pour a concrete pad, lay a heavy-duty composite condenser pad, or secure heavy-duty steel brackets to your home’s foundation. The compressor is bolted down, and vibration-dampening pads are installed underneath the feet to keep the system running quietly.

4. Routing and Connecting Line Sets (1 – 3 Hours)

The refrigerant lines, control wiring, and drain tubing are bundled together and carefully pushed through the wall penetration. The copper tubing must be bent carefully using specialized tools to prevent kinking. Once routed to the outdoor unit, the technician cuts the copper lines to the exact length, flares the ends, and connects them to the service valves using a calibrated torque wrench to ensure a leak-free seal.

5. Vacuum Testing & Commissioning (1 – 2 Hours)

This is the most critical step of the entire process. The technician connects a manifold gauge set, a micron gauge, and a vacuum pump to the system. We pull a deep vacuum down to at least 500 microns and hold it to ensure all moisture and non-condensable gases are completely removed from the copper lines. A nitrogen pressure test is also performed to verify that there are absolutely no micro-leaks in the connections.

6. Final Walkthrough & Testing (30 – 60 Minutes)

Once the vacuum test is successful, the refrigerant valves are opened, releasing the pre-charged refrigerant into the system. The power is turned on, and we run the system in both heating and cooling modes to measure the temperature drop across the coils. Finally, we walk you through how to clean the filters, operate the remote control, and maximize your new system's efficiency.

Mounting the Indoor and Outdoor Units

The physical placement of both the indoor and outdoor units requires careful planning. Indoors, the air handler should be mounted high on the wall, typically leaving at least 6 inches of clearance from the ceiling to allow for proper return airflow. The mounting bracket must be secured directly into wooden wall studs using heavy-duty lag screws.

If you are planning a Mini Split Installation West Linn OR project, our team will carefully evaluate your home's framing to ensure a rock-solid mount.

Outdoors, the condenser unit needs plenty of breathing room to reject heat efficiently. Most manufacturers require at least 12 to 24 inches of clear space behind and on the sides of the unit, and up to 60 inches of clearance directly in front of the fan discharge.

In the Pacific Northwest, we also recommend elevating the outdoor unit on a snow stand or wall bracket. This keeps the condenser clear of heavy rain splatter, pooling water, and winter leaf accumulation, ensuring the system can breathe easy year-round.

Connecting the Line Sets and Pulling a Vacuum

Once the physical units are mounted, they must be joined together by the refrigerant line set. This consists of two copper pipes—one liquid line and one suction line—wrapped in high-density foam insulation to prevent energy loss and condensation dripping.

Connecting these lines is a highly technical task. The copper must be cut cleanly, deburred, and flared with a specialized flaring tool to create a perfect brass-to-copper seal.

After the lines are connected, we must pull a deep vacuum on the system. Any moisture left inside a refrigerant loop can mix with the compressor oil, creating highly corrosive acids that will eventually destroy the system from the inside out.

By using a commercial vacuum pump, we lower the internal pressure of the lines, causing any residual liquid water to boil off and vaporize at room temperature. We do not stop this process until our digital micron gauge reads below 500 microns and holds steady, proving that the system is entirely dry and sealed.

Key Factors That Can Extend or Shorten Your Installation Timeline

While the averages we have discussed are highly reliable, every home in our Oregon service area is unique. Several site-specific factors can either speed up the installation or add several hours of labor to the project.

Understanding these variables can help you anticipate how long your specific project will take:

• Wall Construction Materials: Drilling a three-inch hole through standard wood siding and drywall takes less than ten minutes. However, if your home has brick, stone, stucco, or poured concrete exterior walls, we must use specialized diamond-core drill bits, which can add 1 to 2 hours of labor per hole.
• Line Set Length and Routing: Standard pre-charged line sets are typically 15 to 25 feet long. If your indoor unit is far away from the outdoor condenser, running longer lines through attics, crawlspaces, or drop ceilings adds significant routing time. Line runs over 50 feet may also require our technicians to manually weigh in and add extra refrigerant, adding 30 minutes to the commissioning process.
• Second-Story Access: Installing an indoor unit on a second or third floor requires our crew to work safely from extension ladders or scaffolding. Carrying heavy copper lines and tools up and down ladders naturally slows down the physical pace of the work.
• Electrical Panel Upgrades: Mini splits run on dedicated 240V circuits. If your current electrical panel is fully loaded and has no space for a new double-pole breaker, or if your home's electrical service cannot handle the new load, you may need a panel upgrade. While we can coordinate this work seamlessly, it can add several hours or even an extra day to the overall project timeline. For older homes, ensuring your electrical system is up to code before the HVAC crew arrives is a major time-saver.
• Accessibility: If the outdoor installation area is blocked by dense brush, locked gates, or steep, uneven terrain, it takes longer to transport the heavy outdoor condenser and tools to the site. If you are scheduling a Mini Split Installation Wilonville OR project, clearing a clear path to the installation site beforehand is one of the best ways to keep the project moving quickly.

Professional vs. DIY: How Long Does a Mini Split Installation Take to Complete?

With the rise of "DIY-friendly" mini split kits online, some homeowners consider tackling the installation themselves to save on labor. However, when comparing DIY timelines to a professional installation, there is a massive gap in both speed and safety.

A DIY single-zone mini split installation typically takes an amateur 5 to 8 hours (often stretching across a full weekend), compared to just 4 to 6 hours for a professional two-person crew.

While DIY kits utilize pre-charged, quick-connect line sets that eliminate the need for a vacuum pump, they come with significant long-term risks. If you make a mistake while flaring a joint or routing the lines, you risk releasing chemical refrigerants into the atmosphere. Under U.S. EPA Section 608 regulations, handling or releasing these refrigerants legally requires professional certification.

Furthermore, almost all major mini split manufacturers—including Mitsubishi, Daikin, and Fujitsu—will immediately void your multi-year equipment warranty if the system is not installed and commissioned by a licensed, certified HVAC contractor.

What takes a homeowner a weekend of frustration, research, and trips to the hardware store takes our trained technicians just a few hours of highly efficient, guaranteed work.

Frequently Asked Questions About Ductless Installation Timelines

We know that having technicians in your home can disrupt your daily routine. To help you plan your week, here are some of the most common questions we hear from homeowners regarding mini split installation timelines.

How soon can I use my mini split after the installation is complete?

You can use your new mini split system immediately after the installation is finished! Once our team completes the final vacuum test, releases the refrigerant, and powers up the system, we will perform a live test run.

During this initial startup, we will guide you through a complete walkthrough of the system. We will show you how to use the remote control, set up different operating modes (such as heating, cooling, or dehumidification), and explain how to easily access and clean the washable air filters. Once we hand you the remote, your home comfort is fully in your control.

Can rainy or cold Oregon weather delay my outdoor installation?

In the Pacific Northwest, we are no strangers to damp weather. Light rain or typical overcast Oregon days will rarely delay our installation crew. Our technicians come fully prepared with pop-up canopy tents to keep our tools, electrical connections, and copper line sets completely dry while we work outdoors.

However, severe weather conditions—such as heavy downpours, active lightning storms, or freezing ice—can cause safety hazards, particularly when working with high-voltage outdoor electrical connections or climbing ladders. If severe weather poses a safety risk, we will communicate with you immediately to adjust the schedule.

How can I prepare my home in advance to speed up the process?

Yes, you can absolutely help speed up the installation process! Homeowners can save our crew up to an hour of prep time by taking a few simple steps before we arrive:

• Clear the Indoor Workspaces: Move furniture, wall hangings, and breakable items at least six feet away from the wall where the indoor air handler will be mounted. Our technicians need room to set up step ladders and safely drill through the wall.
• Clear the Outdoor Area: Trim back any low-hanging tree branches, thick shrubs, or ivy around the area where the outdoor condenser pad will sit. Providing a clear, clean workspace ensures our team can safely position the heavy outdoor unit.
• Provide Easy Access: Ensure there is a clear, unobstructed path from our service truck to your electrical panel, attic access, crawlspace, and the designated installation walls. If you have pets, keeping them in a safe, quiet room away from the noise will keep both them and our technicians comfortable.

Conclusion

At the end of the day, understanding how long does a mini split installation take allows you to plan your household schedule with ease. Whether you are looking to add targeted comfort to a single room or completely retrofit a multi-story home with zoned climate control, our team is dedicated to getting the job done safely, cleanly, and efficiently.

By trusting a professional, licensed crew, you ensure that your system is sized perfectly, installed to local mechanical codes, and backed by a full manufacturer's warranty.

If you are ready to upgrade your home's heating and cooling with a highly efficient ductless system, we are here to help. Contact us today to schedule a professional, reliable installation tailored to your home by visiting our Ductless Mini Split Page.
