MERV 13 vs. HEPA: Which Filter Cuts Smoke Best?

How MERV 13 and HEPA Filters Cut Indoor Smoke Particles

Wildfire smoke can enter through small leaks and outdoor-air openings, leaving harmful PM2.5 particles indoors even with windows closed. For homeowners seeking indoor air quality services in Portland, OR, start with an HVAC-compatible MERV 13 filter, set the system to recirculate indoor air, and run the fan when your system can handle continuous operation. Then add a properly sized portable HEPA air cleaner in the bedroom or main living area. MERV 13 captures a meaningful share of smoke particles on each pass, while HEPA captures far more. Neither filter alone removes all smoke gases or odors.

Learn about whole-house air filtration or get help with indoor air quality in Portland, OR.

I’m Chandrine Stepisnik, writing for Best Owner Direct HVAC & Electrical, a family-owned HVAC company based in Cornelius, OR, serving the Portland metro and surrounding Oregon communities.

For help choosing a smoke-filtration setup that works with your HVAC system, explore indoor air quality solutions in Portland, OR.

How MERV 13 and HEPA Filters Reduce Smoke Particles

When wildfire season arrives in the Pacific Northwest, smoke does not merely stay outside. Microscopic combustion byproducts easily penetrate building envelopes, door seals, and window frames. Understanding how merv 13 and hepa filters reduce smoke particles requires a close look at the physics of air filtration media.

Many people assume air filters act purely like a kitchen strainer, where holes are simply smaller than the particles passing through. While that is true for large dust particles (a process known as straining or impaction), wildfire smoke particles behave differently. Smoke is dominated by fine particulate matter (PM2.5)—particles that are 2.5 microns in diameter or smaller. A single human hair measures roughly 70 microns across, making PM2.5 particles nearly 30 times smaller than a hair strand.

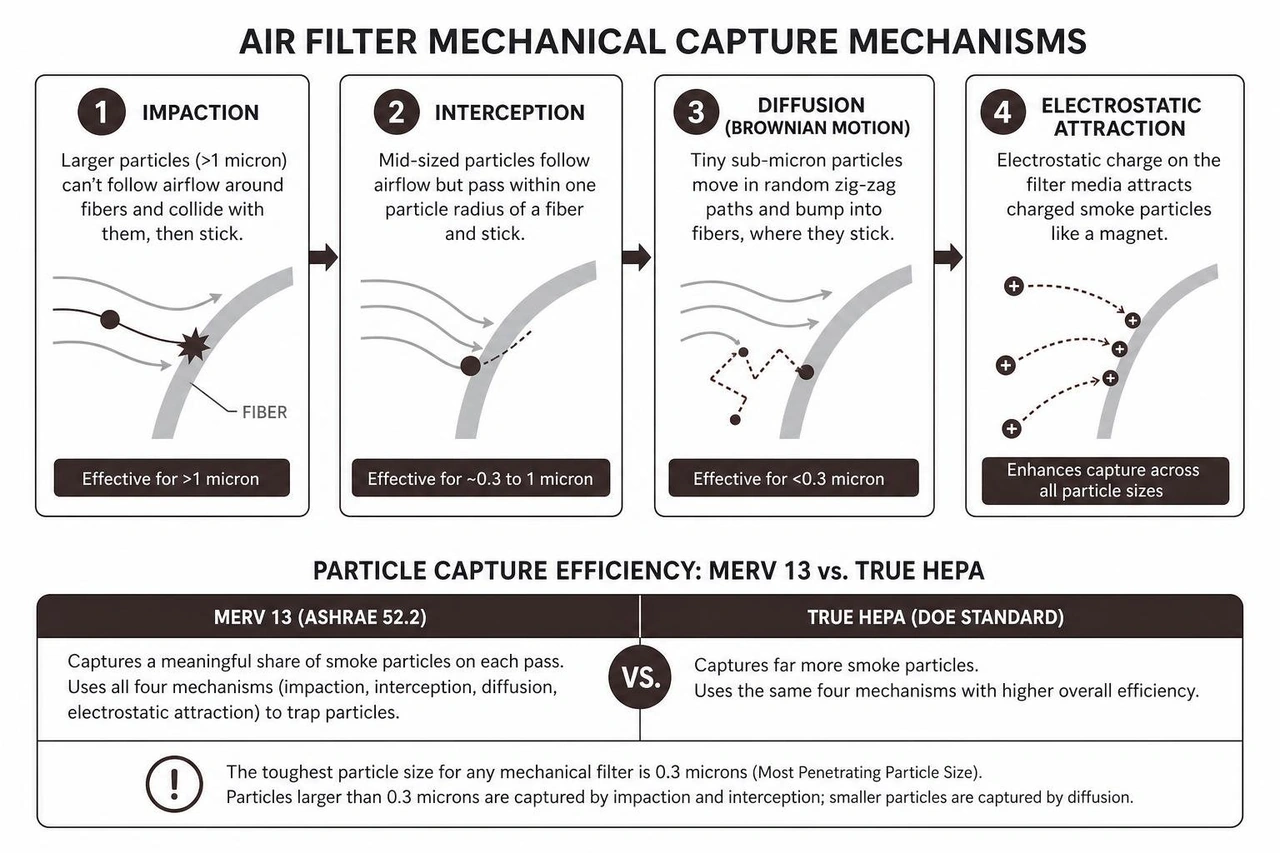

To trap these tiny soot specks, high-efficiency mechanical media rely on four physical capture mechanisms:

1. Impaction: Larger smoke particles (over 1 micron) carry enough inertia that they cannot navigate the curves around the filter fibers, colliding directly with them and sticking.
2. Interception: Mid-sized particles travel along the airflow stream but pass within one particle radius of a fiber, causing them to snag and attach.
3. Diffusion (Brownian Motion): The smallest sub-micron particles (below 0.3 microns) have very little mass and are continuously bumped around by gas molecules in random zig-zag patterns. This erratic movement dramatically increases their likelihood of bumping directly into a filter fiber.
4. Electrostatic Attraction: Many pleated MERV 13 filters carry an engineered electrostatic charge that acts like a magnet, pulling charged smoke particulates out of the airstream.

Evaluating the best AC filter options for homes dealing with smoke and pollen helps homeowners protect both respiratory health and HVAC equipment when skies turn hazy.

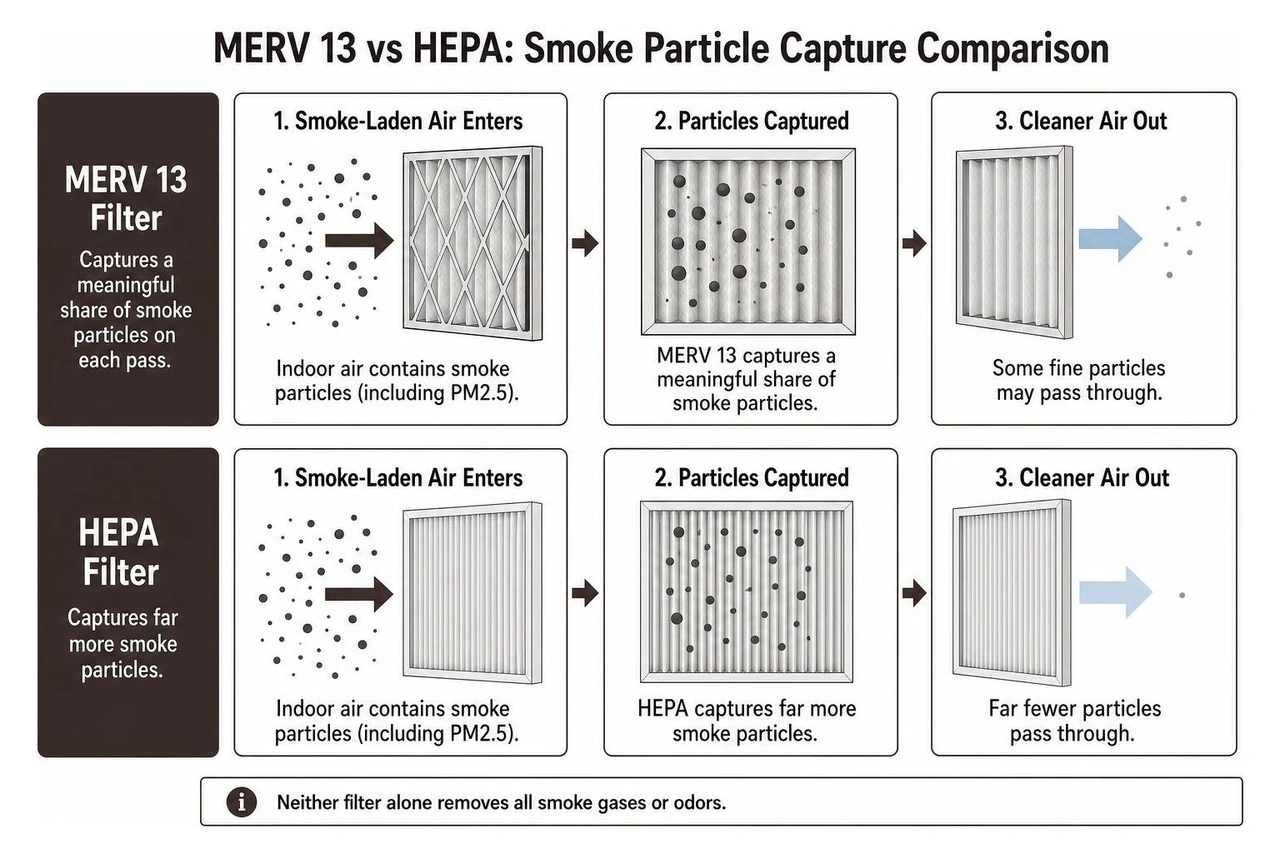

Particle Capture Efficiency: MERV 13 vs. True HEPA Ratings

Air filters are evaluated using standardized testing frameworks. In North America, central HVAC filters follow the ASHRAE 52.2 standard, which assigns a Minimum Efficiency Reporting Value (MERV) ranging from 1 to 16. In contrast, High-Efficiency Particulate Air (HEPA) filters are certified under U.S. Department of Energy (DOE) specifications.

The toughest particle size for any mechanical air filter to catch is 0.3 microns, scientifically known as the Most Penetrating Particle Size (MPPS). Particles larger than 0.3 microns are easily captured by impaction and interception, while particles smaller than 0.3 microns are caught by diffusion.

A MERV 13 filter captures at least 50% of sub-micron particles (0.3 to 1.0 micron range) on a single pass. While that might sound modest compared to HEPA’s 99.97% capture rate, central HVAC blowers move high volumes of air (typically 800 to 1,200 CFM). By recirculating air continuously through the media, a MERV 13 filter cuts indoor PM2.5 levels by roughly 50% across the entire house.

What Neither Filter Can Remove: Smoke Odors and Gaseous VOCs

One common point of confusion is the lingering campfire smell that penetrates homes during smoke episodes.

Mechanical MERV 13 and HEPA filters are designed exclusively to trap solid particulate matter and liquid aerosols. They cannot stop gas-phase pollutants, volatile organic compounds (VOCs), carbon monoxide, benzene, or formaldehyde.

To reduce smoke odors and chemical vapors, air filtration must be paired with adsorption media, such as granular activated carbon or potassium permanganate. Activated carbon contains millions of microscopic pores that chemically bind and trap gaseous molecules. For proactive homeowners, reviewing eco-friendly ways to make your home smell better offers practical steps to manage lingering household odors naturally.

HVAC Compatibility: Why True HEPA Struggles in Central Ductwork

A frequent question we hear every August is: "If HEPA captures 99.97% of smoke particles, why can't I just put a HEPA filter in my furnace?"

The short answer comes down to static pressure and airflow resistance.

True HEPA media uses ultra-dense, tightly woven micro-glass fibers. Pushing air through such dense media requires significant static pressure. Residential air handlers and furnaces are engineered to operate within strict external static pressure limits (usually around 0.5 inches of water column).

Installing a true HEPA filter directly into a standard 1-inch central filter rack creates a massive pressure drop. This starves the blower fan of air, which can lead to:

• Frozen Evaporator Coils: In cooling mode, insufficient airflow causes coil temperatures to drop below 32°F, freezing condensation into a solid block of ice and potentially causing liquid refrigerant floodback that ruins the compressor.
• Blower Motor Overheating: The system blower motor is forced to work against extreme resistance, leading to elevated electrical draw and premature motor burnout.
• Cracked Heat Exchangers or Tripped High-Limits: In heating mode, inadequate airflow causes the heat exchanger to overheat rapidly.

Understanding how the right filter improves your AC efficiency and learning how to choose the right AC filter ensures you protect your indoor comfort equipment while managing smoke risks.

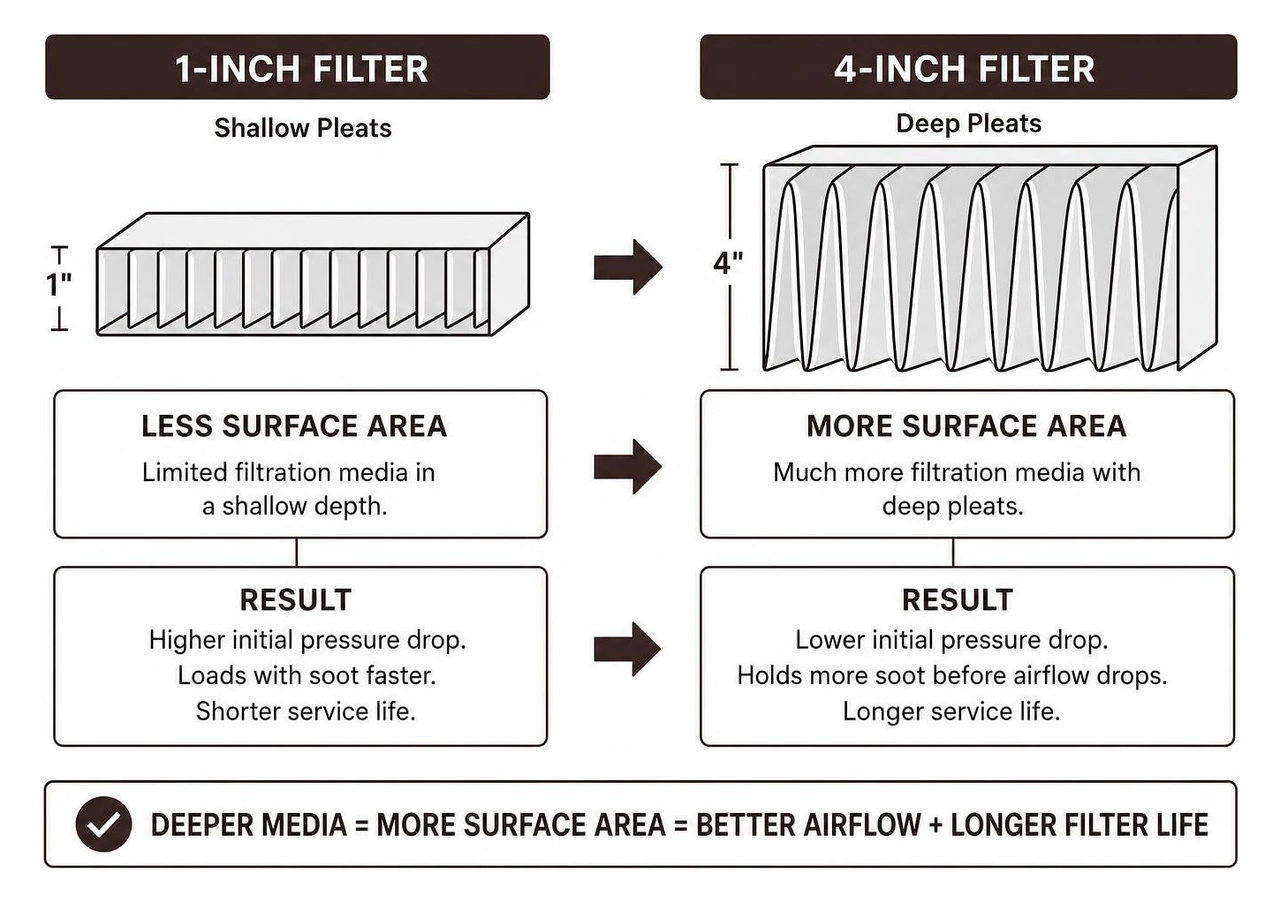

Filter Thickness and Media Depth: 1-Inch vs. 4-Inch Media

If you want the filtration performance of MERV 13 without choking your HVAC blower, media depth makes all the difference.

A standard 1-inch pleated filter has a limited surface area. When upgraded to a high-efficiency MERV 13 rating, a 1-inch filter can load quickly with fine soot, causing static pressure to spike.

By comparison, a 4-inch or 5-inch deep-pleated media filter packs several times more filtration fabric into the same duct opening by using deep accordion-style folds. This provides key operational advantages:

• Lower Initial Pressure Drop: Spreading incoming air across a much larger surface area drops face velocity and reduces resistance.
• Extended Dust-Holding Capacity: Deep media filters can capture substantially more wildfire soot before airflow drops.
• System Longevity: Your blower motor breathes easily, maintaining proper cooling performance throughout the summer.

Exploring the role of air filters in maintaining indoor air quality during summer highlights why deep-pleated media cabinets are one of the most effective upgrades for homes in the Portland metro area.

How MERV 13 and HEPA Filters Reduce Smoke Particles in Central HVAC Systems

To get the most smoke reduction out of your central HVAC system, you need proper operation and bypass management:

• Switch the Fan from "Auto" to "On": Setting your thermostat fan to "On" keeps the blower running continuously, cycling air through the MERV 13 filter multiple times per hour rather than only when heating or cooling calls engage.
• Seal Filter Frame Gaps: Air follows the path of least resistance. If there are gaps around the edges of your filter slot, smoke-laden air will bypass the media completely. Using gasket tape or magnetic slot covers ensures all air passes through the filter.
• Maximize Air Turnover: A properly sized central system circulating 800 to 1,200 CFM will cycle the entire air volume of a 2,000-square-foot home several times an hour.

For comprehensive protection, investing in dedicated whole-house air filtration creates a permanent barrier against fine dust, pollen, and seasonal wildfire drift. Discovering additional methods on how to improve and maintain healthy indoor air quality keeps your family breathing easy year-round.

Building a Layered Defense: Combining Central Filtration with Room Purifiers

The U.S. Environmental Protection Agency (EPA) recommends a layered defense strategy during major smoke events. Relying on a single line of defense is rarely enough when outdoor AQI levels spike above 150 or 200.

The gold standard for residential smoke defense pairs:

1. Whole-Home Central MERV 13 Filtration: Cleans baseline air volume across hallways, living spaces, and common areas.
2. Dedicated Portable HEPA Purifiers: Placed in high-priority zones (such as bedrooms or home offices) to deliver near-zero particle counts where you sleep and spend the most time.

Reviewing 7 tips to improve indoor quality and reduce air pollution in your home provides an actionable roadmap for establishing clean indoor air during regional smoke emergencies.

How MERV 13 and HEPA Filters Reduce Smoke Particles in Portable and DIY Purifiers

When commercial air purifiers are in high demand during regional wildfire events, DIY air cleaners built with box fans and MERV 13 filters offer a scientifically validated alternative.

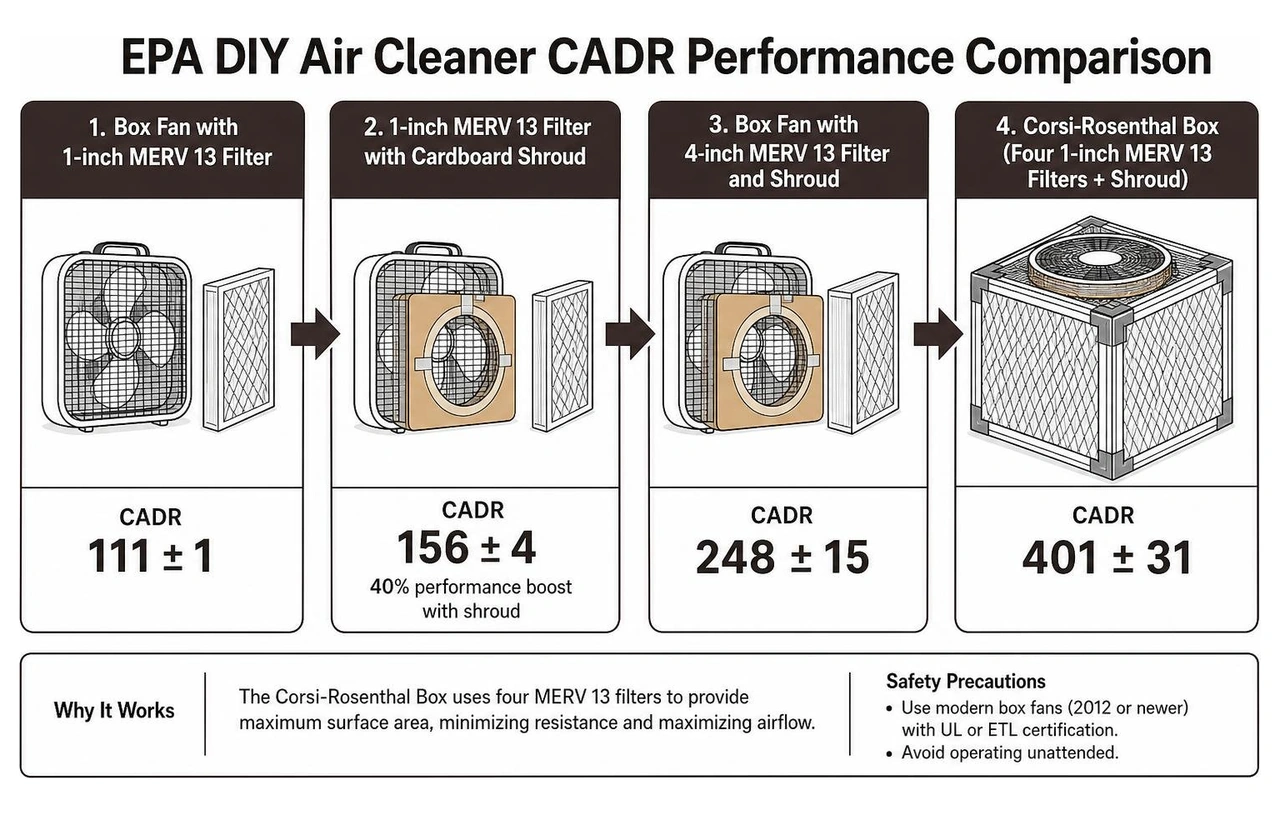

Research conducted by the EPA and building science researchers evaluated the Clean Air Delivery Rate (CADR) of various DIY air cleaner configurations for wildfire smoke:

• Box Fan with 1-inch MERV 13 Filter: CADR of 111 ± 1
• Box Fan with 1-inch MERV 13 Filter and Cardboard Shroud: CADR of 156 ± 4 (a 40% performance boost simply by taping a circular shroud to the front of the fan)
• Box Fan with 4-inch MERV 13 Filter and Shroud: CADR of 248 ± 15
• Corsi-Rosenthal Box (Four 1-inch MERV 13 Filters + Shroud): CADR of 401 ± 31

The Corsi-Rosenthal Box—a cube made of four MERV 13 filters taped together with a box fan on top—outperforms many entry-level commercial air purifiers because the four filters provide ample surface area, minimizing resistance and maximizing airflow.

Safety Precautions for DIY Air Cleaners

• Use Modern Box Fans (2012 or Newer): Ensure the fan carries a UL or ETL safety certification. Fans manufactured after 2012 incorporate fused safety plugs and internal thermal cutoffs.
• Avoid Operating Unattended: Do not leave DIY setups running when leaving the home.
• Inspect Media Regularly: Replace heavily loaded filters immediately, as restricted airflow across a clogged filter can cause older fan motors to run hot.

Duct Sealing and Outdoor Intake Management During Wildfire Events

Even the best filtration setup cannot perform effectively if your ductwork pulls unfiltered air directly from unconditioned spaces.

Many residential duct systems run through vented attics, basements, or crawlspaces. If return ducts have loose joints, tears, or unsealed seams, the negative pressure created by the blower pulls smoky, hot attic air straight into your living areas—bypassing your central air filter entirely.

Professional duct sealing in Portland, OR ensures your HVAC distribution system remains airtight and leak-free. In addition, learning how duct cleaning improves indoor air quality removes settled dust, pet dander, and soot buildup from inside your ventilation trunks.

During active wildfire warnings, always close fresh-air intake dampers, lock out Energy Recovery Ventilators (ERVs) unless they feature specialized inline HEPA filtration cartridges, and set your HVAC system to 100% recirculation mode.

How to Maintain and Replace Filters During Smoke Season

Under normal operating conditions, a 1-inch pleated air filter lasts 60 to 90 days, while a deep 4-inch media filter can often last 6 to 9 months.

Wildfire smoke completely alters this timeline. Heavy concentrations of fine PM2.5 soot can saturate filter media in as little as 2 to 4 weeks during severe smoke episodes.

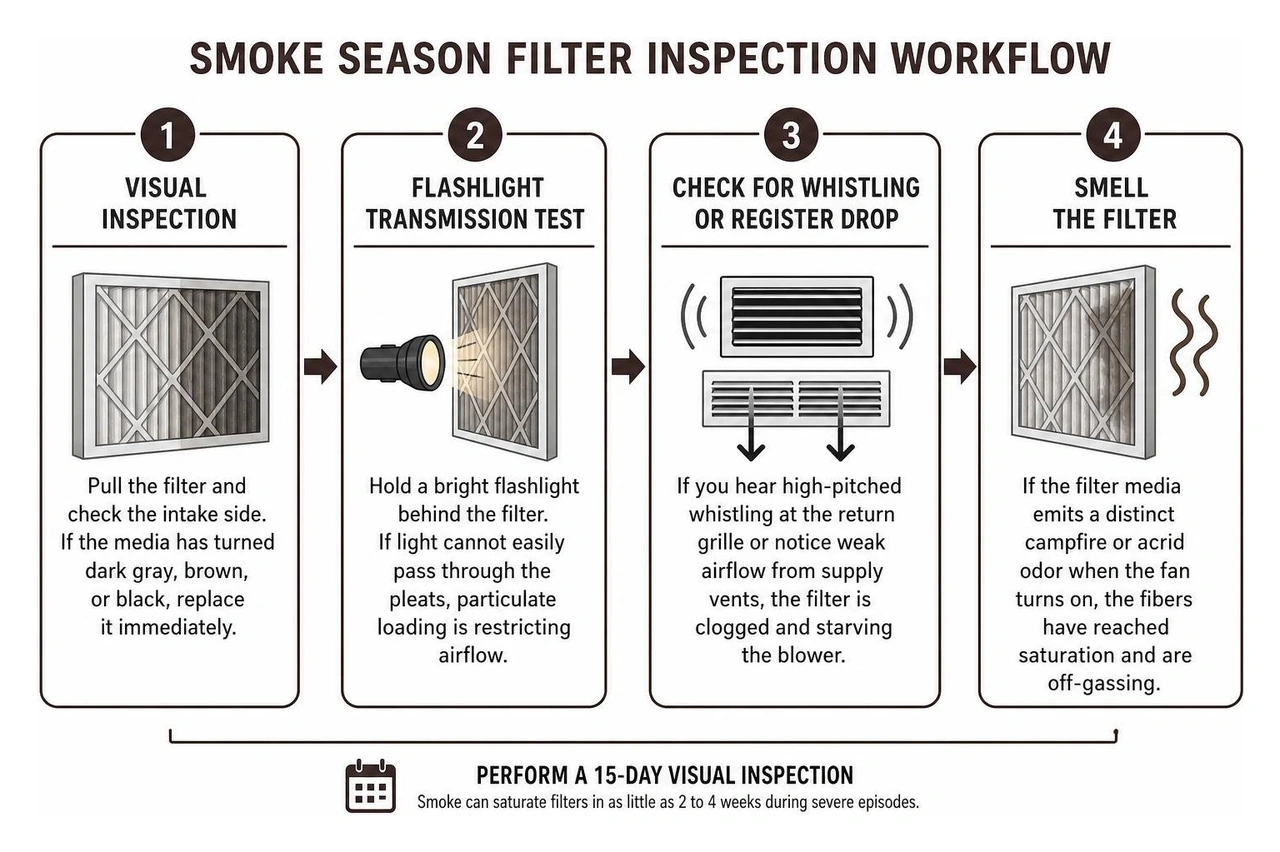

Use this maintenance protocol during wildfire season:

1. Perform a 15-Day Visual Inspection: Pull the filter and check the intake side. If the media has turned dark gray, brown, or black, replace it immediately.
2. The Flashlight Transmission Test: Hold a bright flashlight behind the filter. If light cannot easily pass through the pleats, particulate loading is restricting airflow.
3. Check for Whistling or Register Drop: If you hear high-pitched whistling at the return grille or notice weak airflow from supply vents, the filter is clogged and starving the blower.
4. Smell the Filter: If the filter media emits a distinct campfire or acrid odor when the fan turns on, the fibers have reached saturation and are off-gassing.

Recognizing the 3 signs your home has poor indoor air quality helps you catch dirty filters before they cause blower strain or allow particulate levels to spike indoors.

Frequently Asked Questions About Smoke Air Filtration

Can I put a true HEPA filter in my residential furnace or air handler?

No, you should not install a standard true HEPA filter directly into a residential furnace or air handler filter slot. True HEPA media creates excessive static pressure resistance that standard residential blowers cannot overcome. Doing so can cause frozen evaporator coils, blower motor overheating, and reduced airflow throughout your home. To use HEPA filtration in a whole-home setting, a dedicated in-duct HEPA bypass system with its own booster fan must be professionally installed.

How often should I change my MERV 13 filter during a wildfire event?

During active wildfire smoke conditions, inspect your MERV 13 filter every 15 days. Plan on replacing 1-inch filters every 2 to 4 weeks if outdoor air quality is consistently in the Unhealthy (AQI 150+) range. Deeper 4-inch media filters last longer due to their increased surface area, but they should still be inspected monthly during active fire seasons.

How many air cleaners do I need to protect my home from wildfire smoke?

For effective protection, follow the EPA clean room approach. Use your central HVAC system with a MERV 13 filter to manage whole-house air turnover, and place at least one portable HEPA air purifier in the main bedroom or high-occupancy living room. When choosing portable units, look for a smoke Clean Air Delivery Rate (CADR) that matches at least two-thirds of the room’s square footage (e.g., a 300 sq. ft. room needs a smoke CADR of at least 200).

Conclusion

Safeguarding your home against wildfire smoke requires balancing particle capture efficiency with proper airflow mechanics. While true HEPA filters capture 99.97% of sub-micron particles, their density makes them best suited for standalone portable purifiers. For central HVAC systems, a high-efficiency MERV 13 filter delivers the ideal balance—capturing fine PM2.5 smoke particles while maintaining the airflow your heating and cooling equipment needs.

By pairing a central MERV 13 filter on continuous fan mode with a portable HEPA unit in your primary living space, you establish an effective, multi-layered defense against seasonal smoke.
